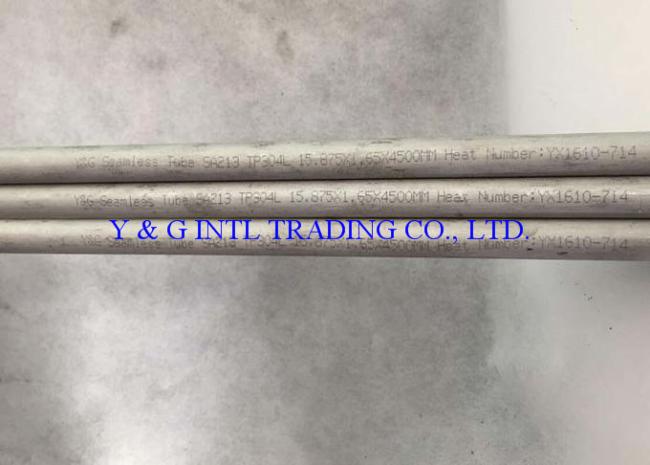

1.65~2.11mm Thickness Stainless Steel Tubing ASME SA213 TP304L TP304 For Gas Industry
ASME SA213 TP304L TP304 TP316L TP316 Stainless Steel Tubing 19.05 * 2.11 * 1905mm 25.4 * 1.65 * 9144mm
Product Standard: ASME SA213
Main steel grades: TP316H TP316 TP316L TP304 TP304L etc
Application:
1. Heat Exchangers, Condensers & Pressure Vessels
2. Chemical & Petrochemical
3. Gas Industry
4. Power Generation
5. Pressure Vessels
6. Marine Equipments
7. Food & Beverage Processing
8. Automotive
9. Pulp & Paper
304 is the standard '18/8' stainless and known to be the most versatile and most widely used stainless steel. It is chosen for its suitability for use in highly corrosive environments, resistance to chromium carbide precipitation, high formability and high weldability. 304L grade is an extra low carbon version of 304 which offers additional resistance to carbide precipitation during welding, therefore eliminating the need for post weld annealing in most cases. Applications include kitchen equipment, welded components of chemical, textile, pharmaceutical and paper processing equipment, cosmetic automotive trim, air bag inflator tubes, automotive and truck exhaust components.
Chemical Composition & Mechanical Properties:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 304 | min.max. | -0.08 | -2.0 | -0.75 | -0.045 | -0.03 | 18.0-20.0 | - | 8.0--10.5 | -0.10 |
| 304L | min.max. | -0.030 | -2.0 | -0.75 | -0.045 | -0.03 | 18.0-20.0 | - | 8.0--12.0 | -0.10 |
| 304H | min.max. | 0.04-0.10 | -2.0 | -0.75 | -0.045 | -0.03 | 18.0-20.0 | - | 8.0--10.5 | - |
| Grade | Tensile Strength(MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
| 304H also has a requirement for a grain size of ASTM No 7 or coarser. | |||||
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed,Pickled.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
Packing: Exporting package/wooden box /as requirement.
