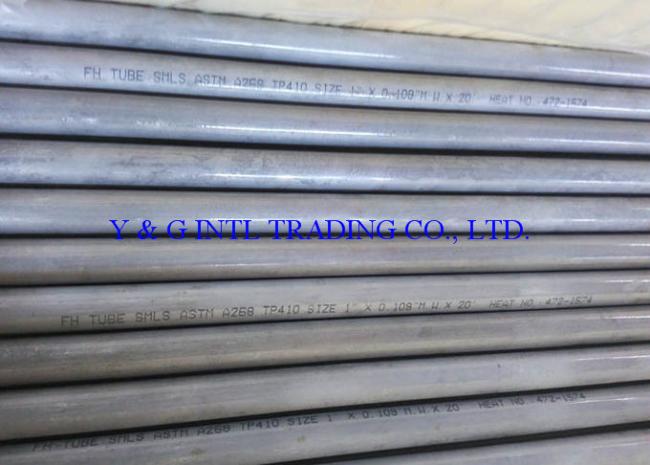

ASTM A269 TP 410 / 410S Stainless Steel Round Pipe With Oxidation Resistance
ASTM A268 TP 410 / 410S Stainless Steel Tubing Cold Drawn Heat Exchanger Tube 4.125 ” * 0.45 ” * 96 ”
Product Standard: ASTM A269-B
Main steel grades: TP410 410S
Application:
Grade 410 has excellent oxidation resistance in high temperatures, and composed by extra-low carbon Ferritic structure, so it has excellent in workability compared with conventional similar grades. Due to this properties, the typical applications for Grade 410 include:
Automotive exhaust systems (manifolds, exhaust pipes, converters, front and tail pipes, converters, mufflers and other components)
Heat exchangers
Catalytic converter systems
Culverts
Home heating systems
Automotive thermostats
Fuel filters
Farm equipment components
Electrical transformer cases
Chemical Composition & Mechanical Properties for Grade 410:
| Grade | C | Mn | Si | P | S | Cr | MO | Ni | N | |
| 410 | Min | - | - | - | - | - | 11.5 | - | - | - |
| max | 0.15 | 1.00 | 1.00 | 0.040 | 0.030 | 13.5 | - | 0.75 | - |
| Tempering Temperature (0C) | Tensile Strength (MPa) | Hardness Brinell (HB) | Yield Strength 0.2% Proof (MPa) | Impact Charpy V (J) | Elongation (% in 50mm) |
| Annealed * | 480 min | - | 275 min | - | 16 min |
| 204 | 1310 | 388 | 1000 | 30 | 16 |
| 316 | 1240 | 325 | 960 | 36 | 14 |
| 427 | 1405 | 401 | 950 | # | 16 |
| 538 | 985 | 321 | 730 | # | 16 |
| 593 | 870 | 255 | 675 | 39 | 20 |
| 650 | 755 | 225 | 575 | 80 | 23 |
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed,Pickled.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
Packing: Exporting package/wooden box /as requirement.
