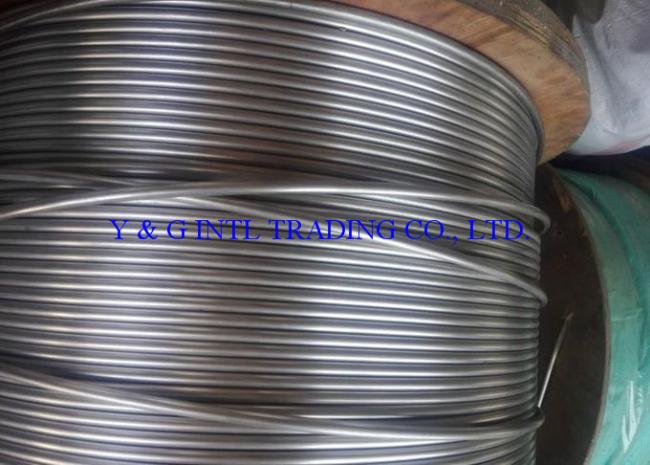

ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
Product Standard: ASTM A213, ASTM A-269, DIN 17458 CLASS 1,DIN 2462-1, EN 10216-5
Main steel grades: 304, 304L, 316, 316L etc
Application:
1. Gas and liquid lines
2. Medical instruments (hypodermic needle)
3. Chromatography
4. Measurement in remote thermometer systems (with or without compensation)
304 is the standard '18/8' stainless and known to be the most versatile and most widely used stainless steel. It is chosen for its suitability for use in highly corrosive environments, resistance to chromium carbide precipitation, high formability and high weldability. 304L grade is an extra low carbon version of 304 which offers additional resistance to carbide precipitation during welding, therefore eliminating the need for post weld annealing in most cases. Applications include kitchen equipment, welded components of chemical, textile, pharmaceutical and paper processing equipment, cosmetic automotive trim, air bag inflator tubes, automotive and truck exhaust components.
Chemical Composition & Mechanical Properties:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 304 | min.max. | -0.08 | -2.0 | -0.75 | -0.045 | -0.03 | 18.0-20.0 | - | 8.0--10.5 | -0.10 |
| 304L | min.max. | -0.030 | -2.0 | -0.75 | -0.045 | -0.03 | 18.0-20.0 | - | 8.0--12.0 | -0.10 |
| 304H | min.max. | 0.04-0.10 | -2.0 | -0.75 | -0.045 | -0.03 | 18.0-20.0 | - | 8.0--10.5 | - |
| Grade | Tensile Strength(MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
| 304H also has a requirement for a grain size of ASTM No 7 or coarser. | |||||
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed,Pickled.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
Packing: Exporting package/wooden box /as requirement.
