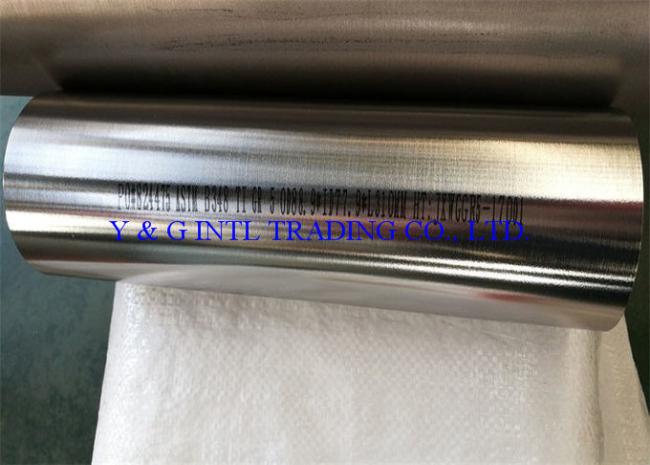

ASTM B 381 Titanium Alloy Tube Grade 5 With High Strength Low Ductility
ASTM B 381 Gr 5 Seamless Titanium Tubing Titanium Seamless Pipe Grade 5 OD248 mm ID176mm Length118mm
Product Standard: ASTM B 381
Grades: Grade 5
Characteristics:
Ti Grade 5 has very high strength but relatively low ductility. The main application of this alloy is in aircraft and spacecraft. Offshore use is growing. The alloy is weldable and can be precipitation hardened.
Chemical composition :
| Grade | Chemical composition | ||||||||||||
| 5 | O | N | C | H | Fe | AL | V | Ni | Mo | Pd | Others | Residuals | Ti |
|
0.20 Max. |
0.05 Max |
0.08 Max |
0.015 Max. |
0.40 Max |
5.5-6.75 | 3.5-4.5 | 0. 4Max. | Bal | |||||
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, normalized+Tempered, etc.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
Packing: Exporting package/wooden box /as requirement.
