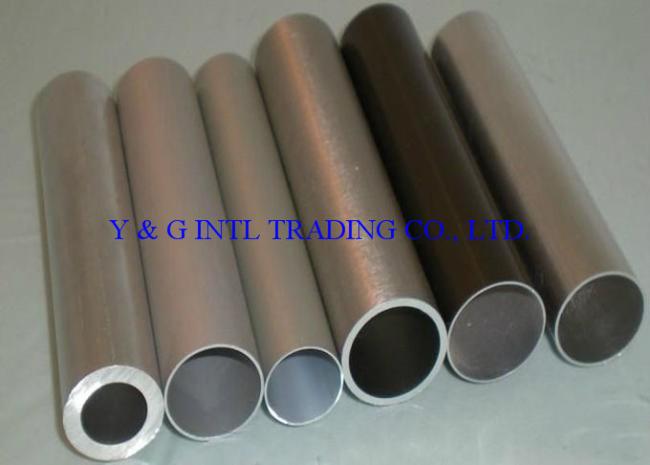

High Tensile Strength Structural Aluminum Tubing 2000 Series 2017 2024 2 Inch
Hollow Aluminum Tube High Tensile Strength 2000 Series 2017 2024 Seamless Aluminum Tube for Structural 2 Inch
2000 series: 2024, 2A16(LY16), and 2A02(LY6) are representative of this series.2000 series Aluminum plates are characterized by higher hardness, of which the highest content of copper is about 3-5 %. 2000 series Aluminum rod is aviation aluminum and is not commonly used in conventional industries.
Production Description:
| items | 2000 Series 2017 2 inch Seamless Aluminum Tube |
| Surface treatment | Mill finish, anodized, etc |
| Material | 2A01,2A02,2A04,2A06,2A10,2A11,2B11,2A12,2A13,2A14,2A16,2B16,2A17,2A20,2A21,2A25, 2A49,2A50,2A70,2A80 and other series |
| Quality | GB/T6893-2000,GB/T4437-2000, ASTM B241,JIS H4080-2006 |
| Status | T4 T5 T6 or other special status |
| Packing | Protective film +plastic film or EPE +Kraft paper |
| Length | Powder coating 6.5meters, anodizing 6.5 meters, mill finish 12 meters |
| Press Machine | 500-4000 tons all together 64 press lines |
| Molding | 1. Using our moulds, no fee; 2. Using customer drawing, opening mould, usually about 5 tons the molding fee is free; |
Chemical Composition:
| Grade | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Al |
| 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-1.0 | 0.4-0.8 | 0.1 | — | 0.25 | 0.15 | — | Balance |
Mechanical Properties:
| Grade | Temper | Wall Thickness(mm) | Tensile Strength(Mpa) | Yield strength(Mpa) | Elongation(%) |
|
2017 |
O | All | ≥245 | ≥130 | ≥12 |
| H112 | ≤18 | ≥395 | ≥260 | ≥12 | |
| ＞18 | ≥395 | ≥260 | — |
Applications:2017 aluminum alloy is the first to obtain industrial applications 2XXX alloy, the current narrow range of applications, mainly for rivets, general mechanical parts, structural and transport tool structures, propellers and accessories;
Mark: As required.
