Anti Air Erosion Aluminium Finned Tubes High Heat Transfer For Building Heating
Finned Tube Heat Ex - Changer Tube 316 / 304 L Type Fin Tube Aluminum Fin Tube
L-type finned tube
L-type finned tube makes the trapezoidal cross-section forming by rolling combine closely with the heat flux density distribution size. The fins combine tightly with the tube,which makes the thermal efficiency higher and put an end to thermal resistance that brings by the non eliminate contact from segment gap of the string type finned tube.
Working Temperature: 230 ℃
Features:
The winding technology improves production efficiency and heat transfer, makes the average fin pitch and higher proportion between fins and tube. At the same time, the base tube can be protected from air erosion.

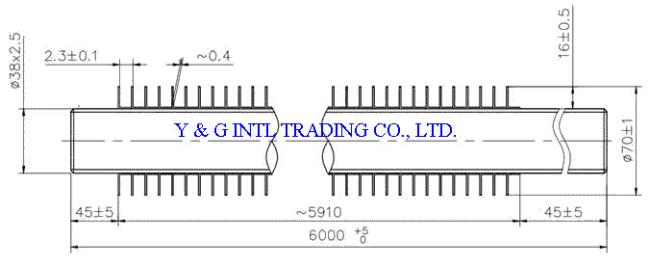

One Of Reference Drawing
| TYPE | NAME | BARE TUBE MATERIAL |
FIN TUBE MATERIAL |
BARE TUBE DIAMETER(MM) |
FIN SPECIFICATION(MM) | ||
| FIN PITCH |
FIN HEIGHT |
FIN THICK |
|||||
| WOUND | L/KL/LL TYPE FIN TUBE |
CARBON STEEL,COPPER, STAINLESS STEEL,ALLOY |
COPPER ALUMINUM |
16-63 | 2.1-5 | ‹17 | ~0.4 |
Application: L-type finned tube mainly used in petrochemical, electric power, paper making, tobacco, building heating and other industry such as air cooler, air heater and air heater of food industry, plant starch spray drying system.
Workshop:
Packing:
Shipping:
