Thermal Proof Chemical Hollow Ball , Corrosion Resistance Covering Ball
Hollow Ball Covering Ball Thermal Proof Chemical Corrosion Resistance

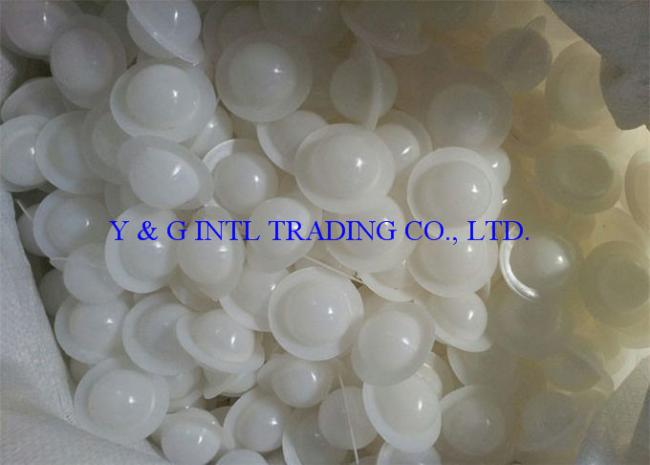

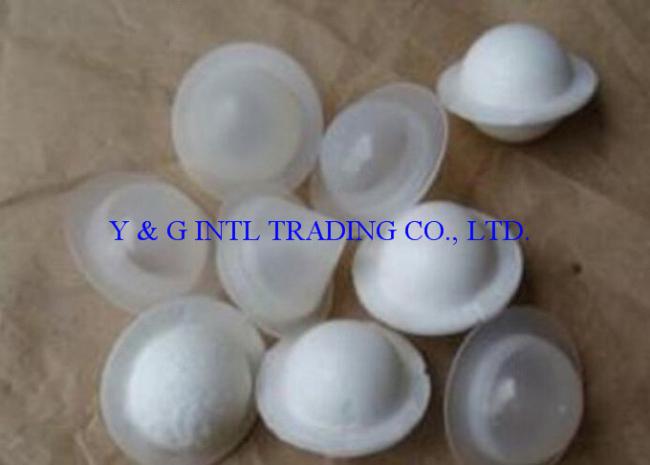

The Covering Ball is designed based on the Hollow Ball. Compared with the Hollow Ball, the Covering Ball has a rim around its surface. It is of big void ratio, thermal proof, resistant to chemical corrosion. The height of pressure drop and transfering unit is low. It has high flooding packing factor, full liquid-gas contact, small bulky density, high transfer efficiency.
Technical indicators of liquid surface covering ball:
| Model | Specification(mm | Operating temperature | Compression strength Mpa |
Packing Amount n/m3 |
Porosity% | Coverage rate% | PH | Acid proof degrees |
| Hollow boundless floating ball | 40 | ≤120 | 0.4 | 710 | 95 | 91 | 1-4 | 36% strong hydrochloric acid |
| Hollow floating ball with edge | 25 | ≤120 | 0.4 | 1560 | 95 | 98 | 1-4 | |
| 40 | ≤120 | 0.4 | 690 | 93 | 97 | 1-4 | ||
| 80 | ≤120 | 0.4 | 235 | 98 | 99 | 1-4 | ||
| Solid boundless floating ball | 40 | ≤120 | 0.4 | 710 | 95 | 91 | 1-4 | |
| Solid floating ball with edge | 40 | ≤120 | 0.4 | 680 | 96 | 97 | 1-4 |
| Size mm |
Surface area (m²/m³) | Free volume (%) | Number per m³ | Bulk density (kg/m³) |
Dry Packing Factor (m-1) |
| 25 | 460 | 0.84 | 85000 | 145 | 776 |
| 38 | 325 | 0.87 | 28000 | 117 | 494 |
| 50 | 236 | 0.90 | 11500 | 81 | 324 |
| 76 | 150 | 0.92 | 3000 | 72 | 193 |
Application: Petroleum, chemical engineering, chloralkali, coal gas, metallurgy, enviromental protection, electricity. It is used in horizontal acid storing cistern and storage or desalination water tank. It can reduce acid mist and the pollution of carbon dioxide and chlorine to the water.
