ASTM A106 Steel Pipe Flanges And Flanged Fittings Connection Pipe
Price:
Negotiable
MOQ:
Negotiation
Delivery Time:
25-35 days
Brand:
Y & G
Product Description

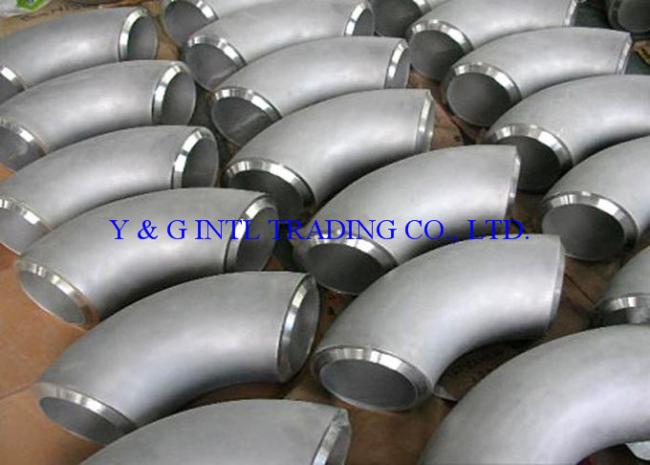

ASTM A106 Bends Fittings and Flange Butt-Welding 90 Degree Elbow and Returns
Bend is a commonly used connection pipe for plumbing installation. It is used to connect the pipe and change the direction of the pipe.
Standard:GB 12459,GB/T 13401,SH 3408,SH3409,HG/T 21635,HG/T 21631,SY/T 0510,ASME B16.9,ASME B16.28
Drawing:
Nominal Pipe Size |
Center to End |
Center to Center |
Back to Back |
|||||
| 45°Elbow | 90°Elbow | 180°Return | ||||||
| DN | NPS | H | F | P | K | |||
| DN | NPS | LR |
LR |
SR |
LR |
SR |
LR |
SR |
| 15 | 1/2 | 16 | 38 | / | 76 | / | 48 | / |
| 20 | 3/4 | 19 | 38 | / | 76 | / | 51 | / |
| 25 | 1 | 22 | 38 | 25 | 76 | 51 | 56 | 41 |
| 32 | 11/4 | 25 | 48 | 32 | 95 | 64 | 70 | 52 |
| 40 | 11/2 | 29 | 57 | 38 | 114 | 76 | 83 | 62 |
| 50 | 2 | 35 | 76 | 51 | 152 | 102 | 106 | 81 |
| 65 | 21/2 | 44 | 95 | 64 | 190 | 127 | 132 | 100 |
| 80 | 3 | 51 | 114 | 76 | 229 | 152 | 159 | 121 |
| 90 | 31/2 | 57 | 133 | 89 | 267 | 178 | 184 | 140 |
| 100 | 4 | 64 | 152 | 102 | 305 | 203 | 210 | 159 |
| 125 | 5 | 79 | 190 | 127 | 381 | 254 | 262 | 197 |
| 150 | 6 | 95 | 229 | 152 | 457 | 305 | 313 | 237 |
| 200 | 8 | 127 | 305 | 203 | 610 | 406 | 414 | 313 |
| 250 | 10 | 159 | 381 | 254 | 762 | 508 | 518 | 391 |
| 300 | 12 | 190 | 457 | 305 | 914 | 610 | 619 | 497 |
| 350 | 14 | 222 | 533 | 356 | 1067 | 711 | 711 | 533 |
| 400 | 16 | 254 | 610 | 406 | 1219 | 813 | 813 | 610 |
| 450 | 18 | 286 | 686 | 457 | 1372 | 914 | 914 | 686 |
| 500 | 20 | 318 | 762 | 508 | 1524 | 1016 | 1016 | 762 |
| 550 | 22 | 343 | 838 | 559 | 1676 | 1118 | 1118 | 838 |
| 600 | 24 | 381 | 914 | 610 | 1829 | 1219 | 1219 | 914 |
| 650 | 26 | 405 | 991 | 660 | ||||
| 700 | 28 | 438 | 1067 | 711 | ||||
| 750 | 30 | 470 | 1143 | 762 | ||||
| 800 | 32 | 502 | 1219 | 813 | ||||
| 850 | 34 | 533 | 1295 | 864 | ||||
| 900 | 36 | 565 | 1372 | 914 | ||||
| 950 | 38 | 600 | 1448 | 965 | ||||
| 1000 | 40 | 632 | 1524 | 1016 | ||||
| 1050 | 42 | 660 | 1600 | 1067 | ||||
| 1100 | 44 | 695 | 1676 | 1118 | ||||
| 1150 | 46 | 727 | 1753 | 1168 | ||||
| 1200 | 48 | 759 | 1829 | 1219 | ||||
Application: Due to its good comprehensive performance, the bend is widely used in basic projects such as chemicals, construction, water supply, drainage, oil, heavy and heavy industries, refrigeration, sanitation, water heating, fire protection, electricity, aerospace, and shipbuilding.
