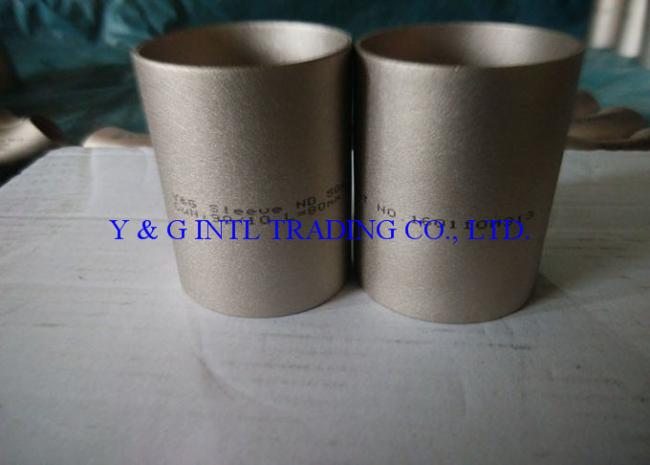

Nipple Coupling Fittings And Flanges 1/8 - 4 Inch Cu Ni / Stainless Steel / Carbon Steel
Price:
Negotiable
MOQ:
Negotiation
Delivery Time:
25-35 days
Brand:
Y & G
Product Description
Fittings and flanges Stainless Steel / Carbon Steel Nipple Coupling SMLS & ERW Pipe Nipple Coupling 3000#,6000#,9000#
Materials: Stainless Steel, Carbon Steel, Copper,UPVC...
Standard: GB/T14626,HGJ529,ANSI B16.11,BS3799,MSS SP-97,JIS B2313...
Size(Seamless): 1/8’’~ 4’’(DN6 ~ DN100)
Thickness: 3000#,6000#,9000#
| Class 3000 | Class 6000 | Class 9000 | ||||||||||||
| Nominal Pipe Size | C | D | Fitting Type |
A | B | E | Fitting Type |
A | B | E | Fitting Type |
A | B | E |
| 3/8 x 1/4 | 0.675 | 0.555 | 1 | 7/16 | 3/4 | 15/16 | 1 | 7/16 | 7/8 | 1 | ||||
| 1/2 x 3/8 | 0.850 | 0.690 | 1 | 7/16 | 13/16 | 1 1/16 | 1 | 7/16 | 15/16 | 1 3/16 | ||||
| 1/2 x 1/4 | 0.850 | 0.555 | 1 | 7/16 | 13/16 | 15/16 | 1 | 7/16 | 7/8 | 1 | ||||
| 3/4 x 1/2 | 1.060 | 0.855 | 1 | 7/16 | 7/8 | 1 5/16 | 1 | 7/16 | 1 1/16 | 1 3/8 | 1 | 7/16 | 1 3/16 | 1 3/4 |
| 3/4 x 3/8 | 1.060 | 0.690 | 2 | 7/16 | 5/8 | - | 1 | 7/16 | 7/8 | 1 3/16 | ||||
| 3/4 x 1/4 | 1.060 | 0.555 | 2 | 3/8 | 11/16 | - | 2 | 3/8 | 7/8 | - | ||||
| 1 x 3/4 | 1.325 | 1.065 | 1 | 9/16 | 15/16 | 1 1/2 | 1 | 9/16 | 1 1/8 | 1 11/16 | 1 | 9/16 | 1 1/4 | 2 |
| 1 x 1/2 | 1.325 | 0.855 | 2 | 1/2 | 5/8 | - | 1 | 7/16 | 1 1/8 | 1 3/8 | 1 | 7/16 | 1 1/8 | 1 3/4 |
| 1 x 3/8 | 1.325 | 0.690 | 2 | 7/16 | 11/16 | - | 2 | 1/2 | 7/8 | - | ||||
| 1 x 1/4 | 1.325 | 0.555 | 2 | 3/8 | 3/4 | - | 2 | 3/8 | 15/16 | - | ||||
| 1 1/4 x 1 | 1.670 | 1.330 | 1 | 9/16 | 1 | 1 7/8 | 1 | 9/16 | 1 3/16 | 2 | 1 | 9/16 | 1 3/8 | 2 3/8 |
| 1 1/4 x 3/4 | 1.670 | 1.065 | 2 | 9/16 | 11/16 | - | 2 | 9/16 | 13/16 | - | 1 | 9/16 | 1 3/16 | 2 |
| 1 1/4 x 1/2 | 1.670 | 0.855 | 2 | 1/2 | 3/4 | - | 2 | 1/2 | 7/8 | - | 2 | 1/2 | 7/8 | - |
| 1 1/4 x 3/8 | 1.670 | 0.690 | 2 | 7/16 | 13/16 | - | 2 | 7/16 | 15/16 | - | ||||
| 1 1/4 x 1/4 | 1.670 | 0.555 | 2 | 3/8 | 7/8 | - | 2 | 3/8 | 1 | - | ||||
| 1 1/2 x 1 1/4 | 1.910 | 1.675 | 1 | 9/16 | 1 1/8 | 2 1/4 | 1 | 9/16 | 1 3/8 | 2 3/8 | 1 | 9/16 | 1 5/8 | 2 3/4 |
| 1 1/2 x 1 | 1.910 | 1.330 | 2 | 5/8 | 11/16 | - | 1 | 9/16 | 1 3/16 | 2 | 1 | 9/16 | 1 3/8 | 2 3/8 |
| 1 1/2 x 3/4 | 1.910 | 1.065 | 2 | 9/16 | 3/4 | - | 2 | 9/16 | 1 | - | 2 | 9/16 | 1 | - |
| 1 1/2 x 1/2 | 1.910 | 0.855 | 2 | 1/2 | 13/16 | - | 2 | 1/2 | 1 1/16 | - | 2 | 9/16 | 1 | - |
| 1 1/2 x 3/8 | 1.910 | 0.690 | 2 | 7/16 | 7/8 | - | 2 | 7/16 | 1 1/8 | - | ||||
| 2 x 1 1/2 | 2.385 | 1.915 | 1 | 9/16 | 1 1/4 | 2 1/2 | 1 | 9/16 | 1 7/8 | 2 11/16 | 1 | 9/16 | 2 1/16 | 3 |
| 2 x 1 1/4 | 2.385 | 1.675 | 2 | 11/16 | 13/16 | - | 2 | 7/8 | 15/16 | - | 1 | 9/16 | 2 | 2 3/4 |
| 2 x 1 | 2.385 | 1.330 | 2 | 5/8 | 7/8 | - | 2 | 13/16 | 1 | - | 2 | 13/16 | 1 | - |
| 2 x 3/4 | 2.385 | 1.065 | 2 | 9/16 | 15/16 | - | 2 | 3/4 | 1 1/16 | - | 2 | 3/4 | 1 1/16 | - |
| 2 x 1/2 | 2.385 | 0.855 | 2 | 1/2 | 1 | - | 2 | 11/16 | 1 1/8 | - | 2 | 11/16 | 1 1/8 | - |
Drawing:
Application: Suitable for pipe connect of steam, air, gas, oil and so on.
