Carbon Steel / SS Stud Finned Tube 10-45mm Height For Heat Exchanger
Stud Finned Tube Stainless Steel Fin Tube For Heat Exchanger
Stud Fin Tube equipment by resistance welding the welding, the welding process is controlled by PLC program, and the indexing feed motor uses brake motor and the man-machine interface can set the stud number. Stud Fin Tube equipment by resistance welding the welding, the welding process is controlled by PLC program, and the indexing feed motor uses brake motor and the man-machine interface can set the stud number, indexing parameters and compensation coefficient, set according to technical requirements to ensure product quality and accuracy.
Surface Protection:
Oil dip, black coating or varnish.
Type of Studs:
Cylindrical or elliptical
Features: Indexing parameters and compensation coefficient, set according to technical requirements to ensure product quality and accuracy. Petrochemical industry application stud fin tube heating furnace convection chamber, can improve the heat transfer.
Size and Materials:
| TYPE | NAME | BARE TUBE MATERIAL |
FIN TUBE MATERIAL |
BARE TUBE DIAMETER(MM) |
FIN SPECIFICATION(MM) | ||
| FIN PITCH |
FIN HEIGHT |
FIN THICK |
|||||
| WELDING | STUDED FIN TUBE | CARBON STEEL,ALLOY,STAINLESS STEEL | CARBON STEEL,ALLOY,STAINLESS STEEL | 25-219 | 8-30 | 5-35 | θ5-20 |
| Items | General Materials | Popular ASTM /ASME Materials |
| Core Tube Material |
Carbon Steel Alloy Steel Heat Resistant Steel, Stainless Steel |
1. Carbon Steel: A106 Gr. B 2. Stainless Steel: TP304/304L,TP316/TP316L, TP347 3. Alloy Steel: P5,T5,P9,T9,T11,T22 |
|
Studs Material |
Carbon Steel Stainless Steel |
1. Carbon Steel 2. Stainless Steel: TP409/410,TP304/304L,TP316/TP316L, TP321/TP321L |

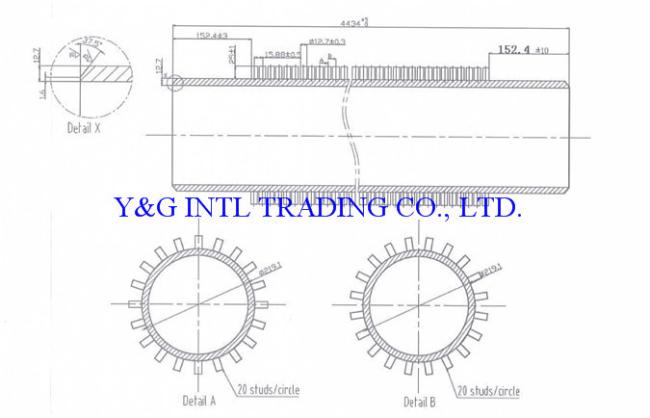

One of Reference Drawing:
Application:
1.Furnace
2.Chemical
3.Petrochemical industry
4.Power station etc.
