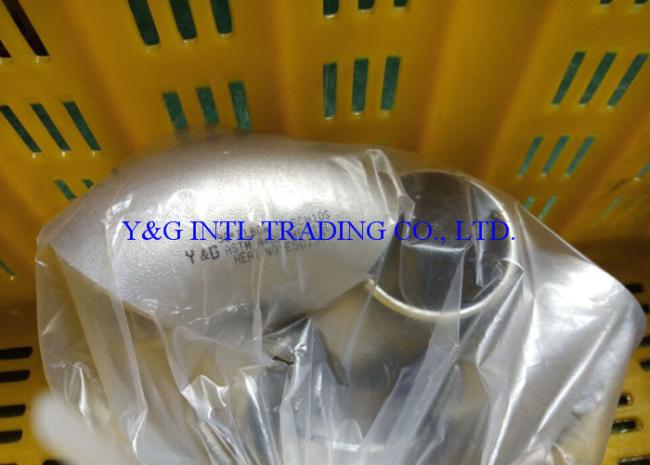

A403 WP316L Stainless Pipe Fittings 90 Deg Elbow Corrosion Resistance
A403 WP316L Stainless Pipe Fittings , 90 Deg Elbow , 6" Sch 10S
Elbow Forged Fittings is in fact a fitting that is being installed in between the two lengths of pipe or a tube to let the change in the direction of a flow. This particular change in the flow is generally being carried out in 45 Deg or 90 Deg route. Meanwhile, these types of fittings comes in different forms such as Elbow 45 deg, 90 degree, Three way elbow, and so on, with features like Dimensional accuracy, Corrosion resistance, Excellent finish, High efficiency, Durable, and lots more. Forged Pipe Fittings Elbow as well provides an everlasting welded bond for important applications.
Standard:GB 12459,GB/T 13401,SH 3408,SH3409,HG/T 21635,HG/T 21631,SY/T 0510,ASME B16.9,ASME B16.28
Drawing:
Nominal Pipe Size |
Center to End |
Center to Center |
Back to Back |
|||||
| 45°Elbow | 90°Elbow | 180°Return | ||||||
| DN | NPS | H | F | P | K | |||
| DN | NPS | LR |
LR |
SR |
LR |
SR |
LR |
SR |
| 15 | 1/2 | 16 | 38 | / | 76 | / | 48 | / |
| 20 | 3/4 | 19 | 38 | / | 76 | / | 51 | / |
| 25 | 1 | 22 | 38 | 25 | 76 | 51 | 56 | 41 |
| 32 | 11/4 | 25 | 48 | 32 | 95 | 64 | 70 | 52 |
| 40 | 11/2 | 29 | 57 | 38 | 114 | 76 | 83 | 62 |
| 50 | 2 | 35 | 76 | 51 | 152 | 102 | 106 | 81 |
| 65 | 21/2 | 44 | 95 | 64 | 190 | 127 | 132 | 100 |
| 80 | 3 | 51 | 114 | 76 | 229 | 152 | 159 | 121 |
| 90 | 31/2 | 57 | 133 | 89 | 267 | 178 | 184 | 140 |
| 100 | 4 | 64 | 152 | 102 | 305 | 203 | 210 | 159 |
| 125 | 5 | 79 | 190 | 127 | 381 | 254 | 262 | 197 |
| 150 | 6 | 95 | 229 | 152 | 457 | 305 | 313 | 237 |
| 200 | 8 | 127 | 305 | 203 | 610 | 406 | 414 | 313 |
| 250 | 10 | 159 | 381 | 254 | 762 | 508 | 518 | 391 |
| 300 | 12 | 190 | 457 | 305 | 914 | 610 | 619 | 497 |
| 350 | 14 | 222 | 533 | 356 | 1067 | 711 | 711 | 533 |
| 400 | 16 | 254 | 610 | 406 | 1219 | 813 | 813 | 610 |
| 450 | 18 | 286 | 686 | 457 | 1372 | 914 | 914 | 686 |
| 500 | 20 | 318 | 762 | 508 | 1524 | 1016 | 1016 | 762 |
| 550 | 22 | 343 | 838 | 559 | 1676 | 1118 | 1118 | 838 |
| 600 | 24 | 381 | 914 | 610 | 1829 | 1219 | 1219 | 914 |
| 650 | 26 | 405 | 991 | 660 | ||||
| 700 | 28 | 438 | 1067 | 711 | ||||
| 750 | 30 | 470 | 1143 | 762 | ||||
| 800 | 32 | 502 | 1219 | 813 | ||||
| 850 | 34 | 533 | 1295 | 864 | ||||
| 900 | 36 | 565 | 1372 | 914 | ||||
| 950 | 38 | 600 | 1448 | 965 | ||||
| 1000 | 40 | 632 | 1524 | 1016 | ||||
| 1050 | 42 | 660 | 1600 | 1067 | ||||
| 1100 | 44 | 695 | 1676 | 1118 | ||||
| 1150 | 46 | 727 | 1753 | 1168 | ||||
| 1200 | 48 | 759 | 1829 | 1219 | ||||
Chemical Composition and Mechanical Property:
| Chemical Composition and Mechanical Property For 316L | |||||||||||
| Steel Grade | Chemical Composition | Mechanical Performance | |||||||||
| C(Max) | Si(Max) | Mn(Max) | P(Max) | S(Max) | Ni | Cr | Mo | N | Tensile Strength (Min) |
Yield Strength (Min) |
|
| Mpa | Mpa | ||||||||||
| 316L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 10.0–14.0 | 16.0–18.0 | 2.00–3.00 | 0.1 | 485 | 170 |
Application: Due to its good comprehensive performance, the bend is widely used in basic projects such as chemicals, construction, water supply, drainage, oil, heavy and heavy industries, refrigeration, sanitation, water heating, fire protection, electricity, aerospace, and shipbuilding.
