Deg Elbow Stainless Steel Flanged Fittings / ASME B16.9 Elbow Pipe Fitting
A403 WP316L 304L 304 Stainless Pipe Fittings 90 45 180 Deg Elbow Corrosion Resistance

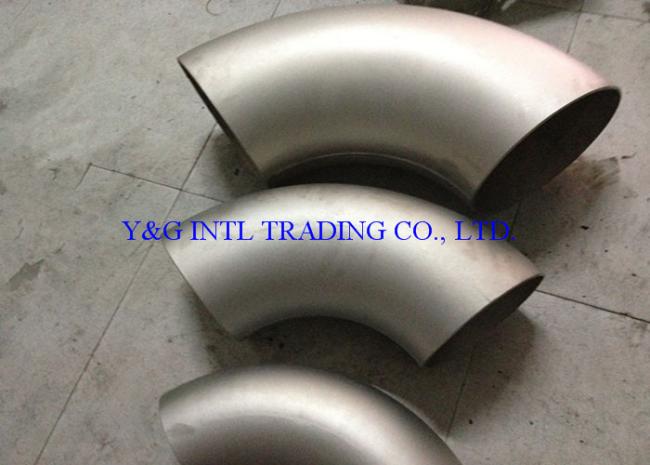

Elbow Forged Fittings is in fact a fitting that is being installed in between the two lengths of pipe or a tube to let the change in the direction of a flow. This particular change in the flow is generally being carried out in 45 Deg or 90 Deg route. Meanwhile, these types of fittings comes in different forms such as Elbow 45 deg, 90 degree, Three way elbow, and so on, with features like Dimensional accuracy, Corrosion resistance, Excellent finish, High efficiency, Durable, and lots more. Forged Pipe Fittings Elbow as well provides an everlasting welded bond for important applications.
Standard:ASME B16.9,ASME B16.28
Drawing:
| ASTM A403/ASME SA403 | ASTM A403 / A403M - 13a Standard Specification for Wrought Austenitic Stainless Steel Piping Fitting | ||||
| Material Grade | WPXM-19 | CRXM-19 | UNS S20910 | WP304 | CR304 |
| WP304L | CR304L | UNS S30403 | WP304H | CR304H | |
| WP304N | CR304N | UNS S30451 | WP317L | CR317L | |
| WP304LN | CR304LN | S30453 | WPS31725 | CRS31725 | |
| WP309 | CR309 | S30900 | WPS31726 | CRS31726 | |
| WP310S | CR310S | S31008 | WP321 | CR321 | |
| WPS31254 | CRS31254 | S31254 | WP321H | CR321H | |
| WP316 | CR316 | S31600 | WPS33228 | CRS33228 | |
| WP316L | CR316L | S31603 | WPS34565 | CRS34565 | |
| WP316H | CR316H | S31609 | WP347 | CR347 | |
| WP316N | CR316N | S31651 | WP347H | CR347H | |
| WP316LN | CR316LN | S31653 | WP348 | CR348 | |
| WP317 | CR317 | S31700 | WP348H | CR348H | |
| UNS S30400 | UNS S30403 | S31703 | S31725 | S31726 | |
| S32100 | S32109 | S33228 | S34565 | S34700 | |
| S34709 | S34800 | S34809 | |||
| Product Form | |||||
| ASME B16.9 | Size:1/2"-48" Wall thickness:SCH5S-SCHXXS | ||||
| ASME B16.28 | Size:1/2"-24" Wall thickness:SCH5S-SCHXXS | ||||
| MSS SP43 | Size:1/2"-24" Wall thickness:SCH5S-SCHXXS | ||||
| MSS SP75 | Size:16"-60" Wall thickness:SCH5S-SCHXXS | ||||
Chemical Composition and Mechanical Property:
| Chemical Composition and Mechanical Property For 316L | |||||||||||
| Steel Grade | Chemical Composition | Mechanical Performance | |||||||||
| C(Max) | Si(Max) | Mn(Max) | P(Max) | S(Max) | Ni | Cr | Mo | N | Tensile Strength (Min) | Yield Strength (Min) | |
| Mpa | Mpa | ||||||||||
| 316L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 10.0–14.0 | 16.0–18.0 | 2.00–3.00 | 0.1 | 485 | 170 |
Application: Due to its good comprehensive performance, the bend is widely used in basic projects such as chemicals, construction, water supply, drainage, oil, heavy and heavy industries, refrigeration, sanitation, water heating, fire protection, electricity, aerospace, and shipbuilding.
