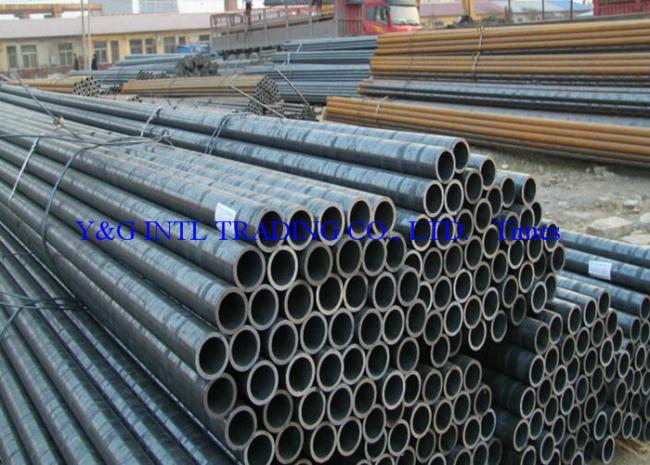

Carbon Seamless Steel Tubing ASTM A519 1018 1026 Hot Finished Or Cold Finished Tubing
Carbon Seamless Steel Tubing ASTM A519 1018 1026 Hot Finished Or Cold Finished Tubing
The ASTM A519 steel tube specification covers both hot-finished and cold-finished mechanical tubing in sizes up to 12-3/4” O.D. A519 is available in round, square, and rectangular profiles, and in special sections.
Stamdard: ASTM A519
Main steel grades: 1008,1010,1020,1025,1026
Application: A519 seamless tubing is commonly used in applications requiring machining, heat treating, close tolerances, smooth finishes, and/or definite physical properties.
Chemical Requirements & Mechanical Proterties:
| Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo |
| 1008 | ≤0.10 | 0.30-0.50 | 0.040 | 0.050 | - | - | - |
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.040 | 0.050 | - | - | - |
| 1018 | 0.15-0.20 | 0.60-0.90 | 0.040 | 0.050 | - | - | - |
| 1020 | 0.18-0.23 | 0.30-0.60 | 0.040 | 0.050 | - | - | - |
| 1025 | 0.22-0.28 | 0.30-0.60 | 0.040 | 0.050 | - | - | - |
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.040 | 0.050 | - | - | - |
| Grade | Condition | MPa Tenslle Point | Yield Point | Elongation |
| 1020 | CW | ≥414 | ≥483 | ≥5% |
| SR | ≥345 | ≥448 | ≥10% | |
| A | ≥193 | ≥331 | ≥30% | |
| N | ≥234 | ≥379 | ≥22% | |
| 1025 | CW | ≥448 | ≥517 | ≥5% |
| SR | ≥379 | ≥483 | ≥8% | |
| A | ≥207 | ≥365 | ≥25% | |
| N | ≥248 | ≥379 | ≥22% |
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, normalized+Tempered, etc.
End: plain end, beveled end, threaded
End protection: plastic caps
Packing: Exporting package/wooden box /as requirement.
