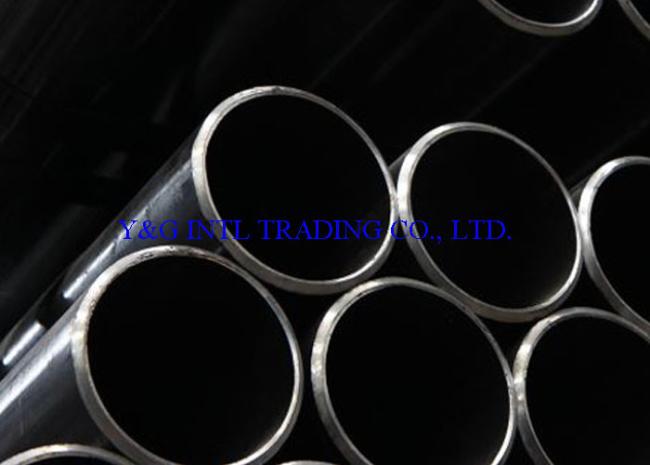

2.0mm - 60mm Wall Thickness Carbon Steel Tube A333 Grade 6 Pipe Seamless
A333 Grade 6 Pipe
Product Introduction
The A333 Grade 6 Pipe is a kind of industrial pipe, suitable for -45℃ ~ -195℃ low
temperature pressure vessel pipe and seamless steel tube for low temperature
heat exchanger piping. It is mainly used in environments with extremely low temperatures,
or for compressed gas applications. This A333 Grade 6 Pipe we produce has excellent
strength and corrosion resistance. This steel pipe is durable, can be used for a long with
low maintenance cost. You can rest assure that the quality of our products is superior in
quality and the price we offer is competitive. We can supply you with this product in
different specification. Please check the details carefully and let us know your requirements
before purchasing!
Chemical Composition
| Chemical Composition (%) | |||||||||||
| A333 PIPE | C | Si | Mn | P | S | Cr | Ni | Cu | Mo | V | Al |
| Grade 1 | ≤0.30 | 0.40-1.06 | ≤0.025 | ≤0.025 | |||||||
| Grade 3 | ≤0.19 | 0.18-0.37 | 0.31-0.64 | ≤0.025 | ≤0.025 | 3.18-3.82 | |||||
| Grade 6 | ≤0.30 | ≥0.10 | 0.29-1.06 | ≤0.025 | ≤0.025 | ||||||
| Grade 8 | ≤0.13 | 0.13-0.32 | ≤0.90 | ≤0.025 | ≤0.025 | 8.40-9.60 |
Specification
| A333 PIPE | Tensile Strength (Mpa) | Yield Strength (Mpa) |
Elongation Y | Elongation X |
| Grade 1 | ≥380 | ≥205 | ≥35 | ≥25 |
| Grade 3 | ≥450 | ≥240 | ≥30 | ≥20 |
| Grade 6 | ≥415 | ≥240 | ≥30 | ≥16.5 |
| Grade 8 | ≥690 | ≥515 | ≥22 |
| A333 PIPE | A333 Gr. 1 | A333 Gr. 3 | A333 Gr. 6 |
| Tensile Strength (min PSI) | 55,000 | 65,000 | 60,000 |
| Yield Strength (min PSI) | 30,000 | 35,000 | 35,000 |
| F° | C° | |
| ASTM A333 Grade 1 | -50 | -45 |
| ASTM A333 Grade 3 | -150 | -100 |
| ASTM A333 Grade 6 | -50 | -45 |
| ASTM A333 Grade 8 | -320 | -195 |
