Ansi Standard 15 Mm To 600 Mm Dia Ss Slip On Flange Class 150 300 600

Name: Ansi Standard 15 Mm To 600 Mm Dia Ss Slip On Flange Class 150 300 600
Brand: Y & G International Trading Company Limited

Price Negotiable

Price: Negotiable

MOQ: Negotiation

Delivery Time: 25-35 days

Brand: Y & G

Product Description

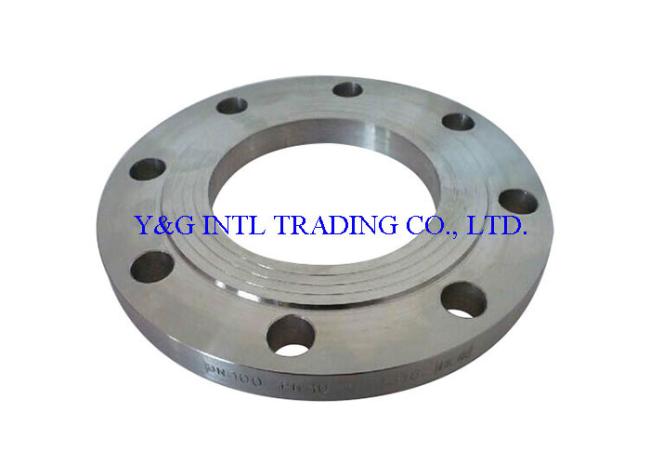

ANSI standard 15 mm to 600 mm dia class 150 300 600 Slip On stainless steel Flange

Material	Inconel,Hastelloy,Monel,Incoloy,GH,Precision alloy,Stainless steel
Flange Standard	ANSI/DIN/JIS/UNI/EN
Flange TYPE	Welding neck flange
	Slip on
	Blind flange
	Long welding neck flange
	Lap joint flange
	Socket welding
	Threaded flange
	Flat flange
Flange Package	Standard export packaging (Plywood Case Of Outside,Plastic Cloth Of Inside)
Flange Package	As Customers' Requirements
Flange Size	DN10-DN3600
Flange Applications	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc.
Flange Heat Treatment	Normalizing, Annealing, Quenching+Tempering

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087	PN14~PN35	95~850	67~781	4~24	M12~M30	14~36
AS 2129	Table C	95~825	67~756	4~16	M13~M27	14~30
	Table D	95~825	67~756	4~16	M13~M27	14~30
	Table E	95~825	67~756	4~16	M13~M30	14~33
	Table F	95~850	67~781	4~24	M13~M33	14~36
	Table H	114~850	83~781	4~24	M16~M33	17~36
	Table J	114~850	83~781	4~24	M16~M30	17~39
ANSI B16.5	ANSI 150	89~813	60~749	4~20	13~32	16~35
	ANSI 300	95~914	67~813	4~24	13~38	16~41
	ANSI 600	95~940	67~838	4~24	13~48	16~51
	ANSI 900	121~1041	83~902	4~20	19~64	22~67
	ANSI 1500	121~1068	83~991	4~16	19~89	22~92
ISO 7005 (DIN)	PN6	80~755	55~705	4~20	M10~M24	11~26
	PN10	95~780	65~725	4~20	M12~M27	14~30
	PN16	95~840	65~770	4~20	M12~M33	14~36
	PN20	90~815	60.5~749.5	4~20	M14~M33	16~36
	PN25	95	65	4	M12	14
	PN40	95	65	4	M12	14
Price	>>Get newest price list
Professional team	All products are customizable.(Color/Material.etc)
