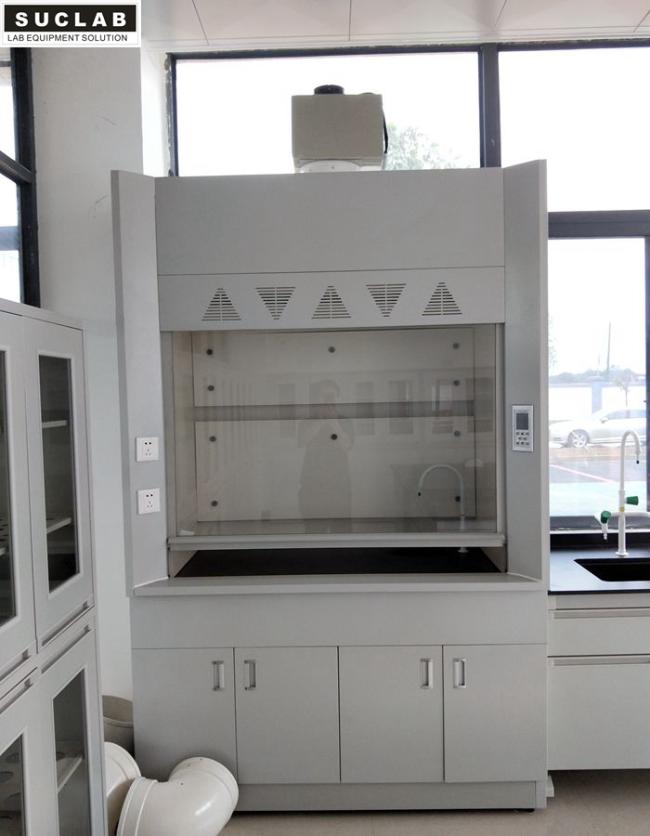

Laboratory Steel Fume Hood With Exhaust System In Chemistry Laboratory
Laboratory Steel Fume Hood With Exhaust System In Chemistry Laboratory
Summary:
Fume hoods are large equipment in laboratories, especially chemical laboratories. The purpose is to reduce the exposure of the experimenter and harmful gases. Complete isolation requires the use of a glove box. The fume hood is the primary barrier to protect personnel from toxic chemical fumes. It can be used as an important safety backup device, such as the failure of chemical experiments, the discharge of harmful gases when chemical fumes, dust and toxic gases are generated, and the protection of workers and the laboratory environment.
Common Type:
1.General purpose: Suitable for general chemical laboratories.
2.Non-pipe type: Built-in high-efficiency activated carbon filter that can be discharged directly into the room.
3.Wind supplement type: Replenish air from the outside to reduce the load on the laboratory air conditioner.
4.Conjoined type: Expand the experimental space to provide convenience for large instruments.
5.Desktop: Fume hood mounted on the bench
6.Two-sided type: They can be operated from both sides
7.Floor type: They is suitable for large experimental devices
Specification:
| Name | Steel Fume Hood |
| Size | L1200/1500/1800*W800*H2350mm |
| Main Material | Cold Rolled Steel Plate |
| Countertop | 12.7mm Phenolic Resin Top, 19mm Expoxy Resin Top, 20mm Ceramic Top |
| Cabient | 1.0mm Cold Rolled Steel Plate |
| Sash | 5mm Thickness Tempered Glass |
| Foot | 5mm Adjustable Nylon or Stainless Steel Foot |
| Accessories | PP Sink, Water Tap, Single Eye Wash, PP Peg Board |
| Warranty | One Year |
Compared of Laboratory Countertop:
| Material | Phenolic Resin | Epoxy Resin | Ceramic |
| Component | Kraft Paper | Quartz Sand | Kaolin |
| Colour | Normal Fifteen Colour | Black and Gray | Black,Lvory White and Apple Green |
| Thickness | 12.7mm, 19mm,25mm | 16mm,19mm | 20mm |
| High Temperature Resistance | 135°C | 400°C | 1200°C |
| Feature | 149 Chemical Reagents Resistance | Verious Chemical Reagents Resistance | Majority Chemical Reagents Resistance and Organic Solvents |
| Avoid Reagents | Have a Flaw In 98% Sulfuric Acid | Have a Flaw In 98% Sulfuric Acid | Have a Flaw In 48% Hydrofluoric Acid |
| Test Reagents | 16 Hours | 16 Hours | 16 Hours |
| Test Methods |
1.For non-volatile reagent solution, drop the reagent solution directly onto the countertop.
2.For volatile reagent solution, use a cotton wool to saturate the reagent solution and contact it with a countertop. Cover with a visible glass or a wide-mouth bottle.
3.The above reagent solution was placed on the table at room temperature of 25 degrees. After 16 hours, the table was washed with soap and water, and dried for inspection. |
||
Advantage:
1.Professional advice to help you purchase laboratory products you wanted.
2.Professional export service team severs in the deal.
3.Customized service is available,OEM business is appreciated.
4.We will inspect and test all laboratory products carefully to ensure no damage and lost beforedelivery.
5.The success of our cooperation can be guaranteed for our company is a credible and honest partner.
6.We have our own overseas technician and installation team.
