Stainless Steel Emergency Shower Eyewash From Laboratory Fittings

Features of Stainless Steel Eyewash:

1. The wall mounted eyewash is doing ABS dipping on the basis of stainless steel eyewash,can corrode resisting various chemical substances.

2. Only the eye wash system.

3. The use of installed directly on the working site on the wall.

4. The product properties can meet the requirements of ANSI Z358-1 2004 American eyewash standard.

5. Applicable to the use of petroleum, chemical, electronics, clothing, metallurgical and other industries.

Installation Requirements:

1. They must be installed in the vicinity of dangerous work area, the effective rescueradius is 10 or 15 meters.

2. Within a 1.5 meters radius of eyewash, cannot have the electrical switch, so as to avoid electrical short circuit.

3. Must be connected to drinking water, water pressure can not be less than 1 kg.

4. Eye wash system water inlet size is 1/2 inches, outlet size: 5/4 inch.

The Use Requirements:

Open and close the valve by hand, eye wash water from the eye wash system for automatic ejection; after using, must be valve reset, dustproof cover reset.

Structure:

1. Eye head: for cleaning water spray on the eye and face mouth, ABS material.

2. Eye wash spray dust cover: used to protect the dustproof device of eye head,ABS material.

3. Eye wash basin: a collection of eye wash wastewater, ABS material.

4. Valve: used to open and close the valve device for water, hand push type.

5. Pipe: a device used to guide the flow of water.

6. Screen: used to filter out into the eye wash debris.

7. The base: fixed eyewash.

Introduction:

1. Composition: the product consists of eye wash composition

2. Material: stainless steel 304 non-toxic materials, good corrosion resistance

3. Style: Manual

4. Performance: anti-corrosion, anti acid, alkali, salt solution

5. Water: eye wash nozzle flow 12--18 L / min.

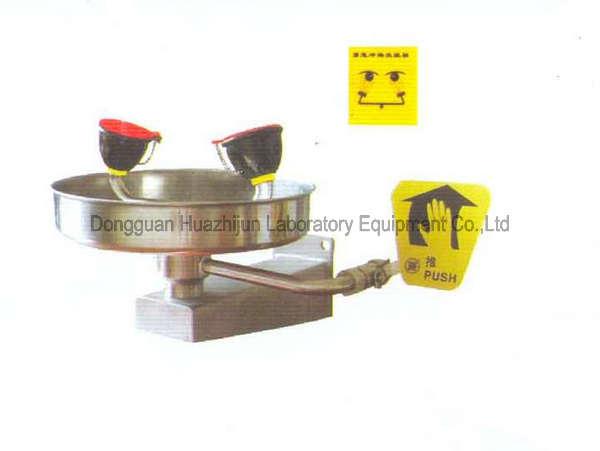

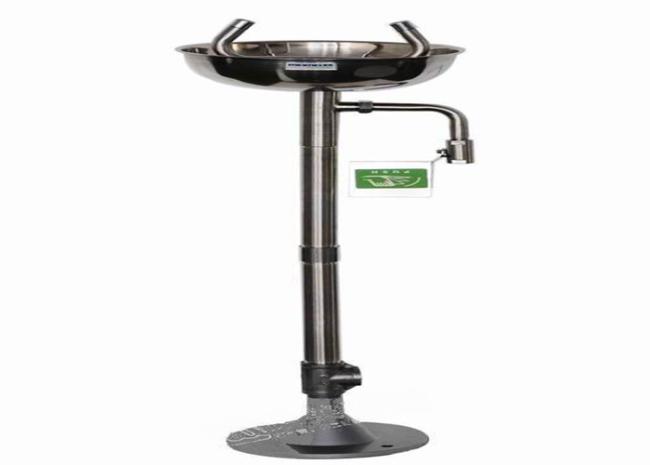

Photos of Stainless Steel Eyewash:
