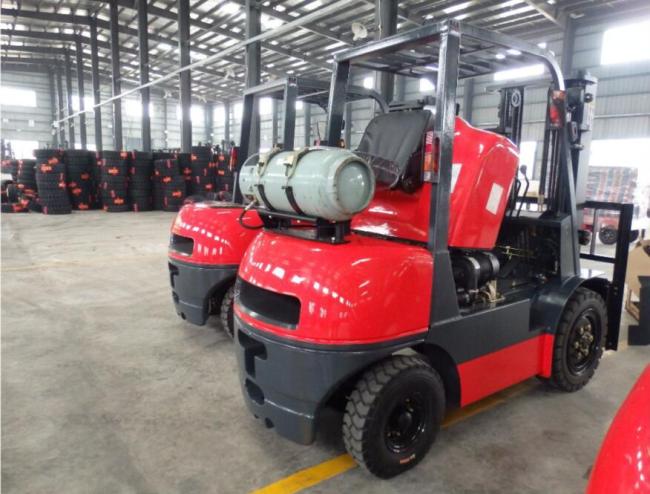

Gas Engine Powered Pallet Truck Type LPG Forklift 3000kg Loading Capacity

Price Negotiable

Price: Negotiation

MOQ: 1-10 pcs

Delivery Time: 15 days

Brand: Bilon

Product Description

Gas Engine Power Souce and Powered Pallet Truck Type LPG forklift

A reliable mast :

Emphasis on the inherent quality of the mast has provided operatoe a reliable security. Wide view mast makes vision more clearly.
we adopted the German mast channel which has the world-class quality.
The cross-section of mast channel has been increased and the structure become more strong.

New type of adjusting mechanism of the steering:

The new type steering wheel dual threaded adjustment mechanism with patented technology has improved the operator comfort and adjustment reliability

New drive and control system :

Adopt the international electric actuators and makes the truck steering more stable,and output power stronger.
New electronic blanker improves the comfort and safety of the operation.

Model		LP20	LP25	LP30	LP35
Load capacity kg		2000	2500	3000	3500
Load center mm		500	500	500	500
Power type		LPG&Gasoline
Max.lifting speeds(with load)mm/s		530	530	440	440
Max.Driving speeds(with/without load)km/h		17/19	17/19	18/19	18/19
Max.Towing speeds(with/without load)kN		20/15	20/15.2	20/16	20/16
Gradeability(with/without load)%		21/20	18/20	20/20	20/20
H1 Lifting height mm		3000	3000	3000	3000
Tilting angles(forward-backward) .		6/12	6/12	6/12	6/12
Min. turning radius mm		2170	2240	2400	2400
Min.intersecting aisle mm		2200	2280	2380	2380
Min. under-clearance mm		110	110	135	135
Dimensions	A Overall length (with/without fork) mm	3422/2502	3646/2576	3752/2682	3752/2682
	B Overall width mm	1170	1170	1225	1225
	H Overall height(mast lowered) mm	2000	2000	2065	2065
	H2 Overall height(mast extend) mm	4030	4030	4262	4262
