The JF800 Bimetallic Bearing Bushes, also known as SAE797-compliant bearing bushes, are specifically designed for connecting rods in automotive and industrial engines. These bearing bushes feature a unique bimetal construction, combining a steel backing with a bronze overlay, to provide superior wear resistance and durability.

The steel backing offers the necessary strength and rigidity to withstand the dynamic loads and pressures generated by the reciprocating motion of the connecting rod. The bronze overlay, on the other hand, provides excellent tribological properties, including low friction and good wear resistance, ensuring smooth and efficient operation of the engine.

One of the key features of the JF800 Bimetallic Bearing Bushes is the presence of an oil groove. This groove allows for the distribution of lubricant throughout the bearing bush, reducing friction and wear even further. The oil groove also helps to dissipate heat generated during operation, preventing thermal damage to the bearing bush.

The combination of the steel-bronze bimetal construction and the oil groove makes the JF800 Bimetallic Bearing Bushes an excellent choice for demanding engine applications. They are widely used in automotive engines, as well as in industrial engines such as diesel engines, gas engines, and compressors.

The precision manufacturing process ensures that the JF800 Bimetallic Bearing Bushes fit precisely into the connecting rod and crankshaft journals. This precise fit reduces friction and wear, improving engine efficiency and durability.

Overall, the JF800 Bimetallic Bearing Bushes with Oil Groove are reliable and robust components that offer superior wear resistance and durability in a variety of engine applications. Their bimetal construction and oil groove design ensure smooth and efficient operation of the engine, while also extending its service life.

China Factory, OEM, Customized Shifting Fork Bushings, Bimetal Bushing Bearing Auto Bushes, High Quality

Factory price bimetal bushing with oil grooves Customized lubrication  Copper-based Alloys Steel backed bronze sintered Bi Metal bushings SAE 797/SAE 799/SAE 783 /SAE 48 Bi Metal Sintered Bushings

Standard Groove Bronze Steel Bushings Circular, Straight,Single Loop,Double Loop,Straight & Circular Figure Eight Double Figure Eight

Metallic Self-lubricating Maintenance-free Bearings

Bi-metal Bushings is a thin-walled self-lubricating composite sliding material.

It consists of a backing made of standard steel, stainless steel or bronze with a steel bronze layer applied in a combined rolling/sintering process.It is better to pay attention to the VIIPLUS Self-Lubricating Bearings solution.

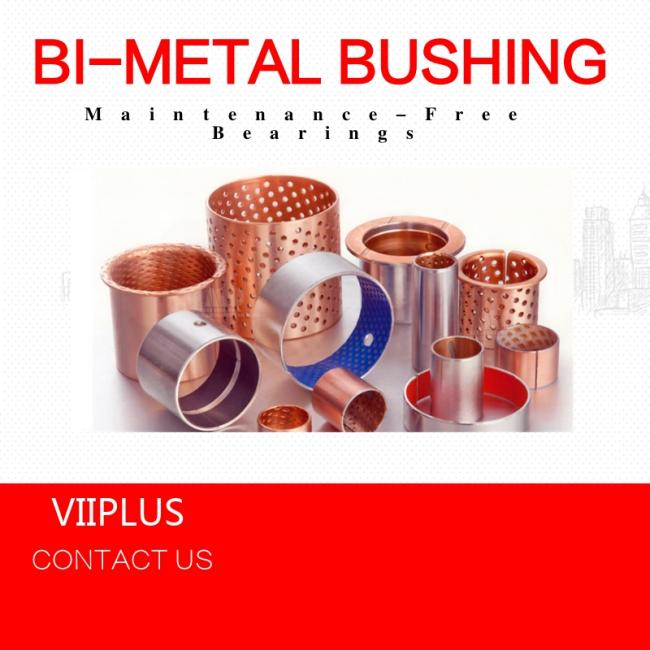

Bimetal Bearing & bushings

VIIPLUS offers basically the same bearing characteristics as self lubricating bearings.metal but is capable of handling even higher loads and offers an economic solution to many bearing problems.

Your Powerful Assistant We are Providing Good Services

Typical application

Bimetal Bushing application for Water turbines, Injection molding machinery, food & beverage, tire molds, rotor lock in wind turbines, marine & offshore, heavy duty,  iron & steel works, steam turbines, gas turbines, compressors

Characteristic

This bearing is the kind of Flange bush with the steel backing sintered with bronze powder through the friction welding. The surface may be incorporated with various kinds of oil grooves, pockets to meet different necessities of various lubricating
conditions.

This product is widely applied in various automobile engines, vehicle hassis, motorcycle clutches, rubbing plate of gear pumps and other hoist machines．

Bimetal Bearing & Bushing Manufacturing

Features and benefits include:

allows maintanance-free operation
posses high static and dynamic load capacity
is stick-slip-free with low coefficient of friction
offers a high margin of safety against mating material damage
is utilisable at temperatures ranging from 190°C (-310°F) up to 280°C (536°F)
is utilisable at corrosive environments
works well even under dirty environment (dust, abrasive particles, etc.)

Technical Data

Standard Tolerance Dimension Table

Materials

• Support materialSteel copper-plated / tin-plated

• Sliding layerCuPb10Sn10

Tolerance Details

• Housing ØH7

• Bushing inner-Ø after mountingH9

• Shaft tolerancef7 to h8

Maintenance

• is a low-maintenance composite sliding bearing, but primary lubrication is necessary. Oil or grease lubrication is possible. Due to solid lubricant storages, lubrication clearances are reduced to a minimum!

CAPTION

Special dimensions are available on request.Get in touch-Industrial Catalogue Oil & Gas bushes Catalogue!
