Customzied Groove Bronze Gleitlager Thin Wall Sleeve & Flange For Excavators
We specialize in manufacturing customized groove bronze Gleitlager thin wall sleeves and flanges specifically designed for excavators. Our products are tailored to meet the unique requirements of excavator applications, ensuring optimal performance and durability.
The bronze material used in our Gleitlager sleeves and flanges offers exceptional wear resistance and corrosion resistance, making them suitable for use in harsh and demanding environments. The thin wall design reduces weight while maintaining strength and rigidity, ensuring smooth and efficient operation.
Our customized flanges are precision-manufactured to fit perfectly with the excavator's components, providing a secure and reliable connection. Wh you need a specific groove pattern, wall thickness, or flange size, we can customize our products to meet your exact specifications.
We pride ourselves on our commitment to quality and customer satisfaction. Our experienced team of engineers and technicians ensures that each product undergoes strict quality checks before delivery, guaranteeing its performance and reliability.
Contact us today to discuss your excavator's specific needs and how our customized groove bronze Gleitlager thin wall sleeves and flanges can enhance its performance and lifespan. We look forward to working with you to provide the best solution for your excavator application.
Bronze Bushing Saves You Time & Money In Research, Design & Bronze Bearing Production Costs. E-mail Now!
Find Matching Bronze Bearings,Select the Bronze Bushings Bearing That Meets Your Demands,Customzied Groove Casting Bronze Gleitlager Thin Wall Bearing Sleeve & Flange for EARTHMOVING:Scrapers Dozers Loaders & Excavators
C93200 (SAE 660) Bronze Bushing
Oil & Grease Groove Bronze Bushings & Bearings | Customzied Groove Bronze Gleitlager
Choose from our selection of SAE 660 bronze bushings, including sleeve bearings, flanged sleeve bearings, and more.
Our large Bronze stock is available in various shapes and bronze bushing with full sizes available.
CUSTOM & SPECIAL GROOVE PATTERNS
Wide range of Bronze Bushing ready in stock.
ASTM Standard Designation for C93200: ASTM B505 & ASTM B271
SAE Standard Designation for C93200: SAE 660
| Chemical Composition (%max., unless shown as range or min.) | |||||||||||
| Cu(1) | Al | Sb | Fe | Pb | Ni(2) | P(3) | Si | S | Sn | Zn | |
| Min./Max. | 81.0-85.0 | .005 | .35 | .20 | 6.0-8.0 | 1.0 | .15 | .005 | .08 | 6.3-7.5 | 1.0-4.0 |
| Nominal | 83.0 | - | - | - | 7.0 | - | - | - | - | 6.9 | 2.5 |
*In determining copper minimum, copper may be calculated as copper plus nickel
Mechanical Properties
| Tensile Strength. min | 35 ksi | 241 MPa |
| Yield Strength @ .5% ext under load min | 20 ksi | 138 MPa |
| Elongation in 2 in. or 50 mm min, % | 10 | |
| Brinell Hardness,min | N/A | |
| Machinability Rating | 70% | |

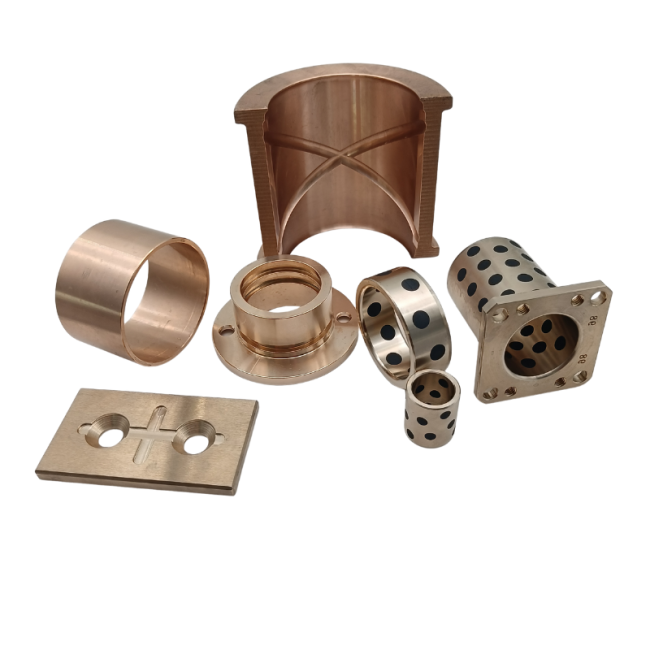

Bronze bushing types
- Bronze Bushings
- Bronze Liners
- Bronze Wear plates
- Bronze Washers
- Bronze Bar Stock
Excavators Bronze Bushings
Oil and grease grooves – Single Loop – Figure Eight – One Straight & One Circular – Double Loop – Double Figure Eight – R.H. & L.H. Spiral – Straight Groove – Circular Groove
Overview
We manufacture excavator parts for Oem’S Bushings & Flange Bearing,Thrust Washer
Brown Brass Copper Sleeves,Sleeve bushes and flange bearings are manufactured using c86300 / c95400 / c93200 alloy compared to OEM alloy bushes. High quality sleeves increase abrasive properties while maintaining excellent metal lubricity. VIIPLUS SLIDING CHINA BEARING and sleeves are specially designed to prevent seizure and reduce wear.Custom and special groove models LARGE DIMENSIONS. Systematic and careful inspection procedures ensure that our centrifugal or continuous cast bronze products are shipped to meet the highest material and processing standards.Custom and special groove pattern. Sliding bearing with customized bush sleeve VIIPLUS is a leading manufacturer of custom machined bronze components with experience in producing self-lubricating bearings. We can manufacture virtually any bushing, bearing or related part to your specifications. If you do not have a drawing, we will work with you to reproduce your part from a sample.
Made-To-Order from China Factory Cast Bronze Sleeve Bearings Types of oil groove Customzied for an Oil/Grease Application.Material C86300 / C95400 / C93200 SAE 841 cast bearing / bronze bushing with custom made oil / grease hole and internal groove.
Casting high quality economically favorable bronze material CuSn6Pb6Zn3(Qsn6-6-3) bushing thin wall bearing made to order from china.
Application:
Machine-tool, spring pin, steering shaft and transmission.
Material | CuSn6Pb6Zn3(Qsn6-6-3) |
Max Dynamic Load | 60N/mm2 |
Density | 8.7g/cm3 |
Max Linear Velocity(Grease) | 0.85m/s |
Max PV value Grease | 1.65N/mm2·m/s |
Friction Coefficient | 0.09~0.15 |
Working Temperature | 40~140℃ |
Pressure strength | >240 |
Mating Axis | Hardness≥40, Roughness 0.4~1.0 |
Coefficient of heat conduction | 52W/m·K |
Yield Strength | >100 N/mm2 |
Linear Expansion Coefficient | 18.5*10-6m/k |
Typical Application | machine-tool, agricultural machinery, crane electromotor, spring pin, steering shaft and transmission |
Packing and Delivery
Packaging Details: anti-corrosive paper, cardboard, wooden crate or pallet
1. Inner packaging
For small products: 100 items - 200 items. In a sealed plastic bag.
For larger products: 2 items - 10 items. Per roll of plastic film (depending on product size)
2. External packaging
8 pieces - 300 pieces in a carton (depends on product size)
3. Packing the shipment
18-24 cartons per box or pallet, shockproof and safe for transport.
PORT:SHANGHAI
