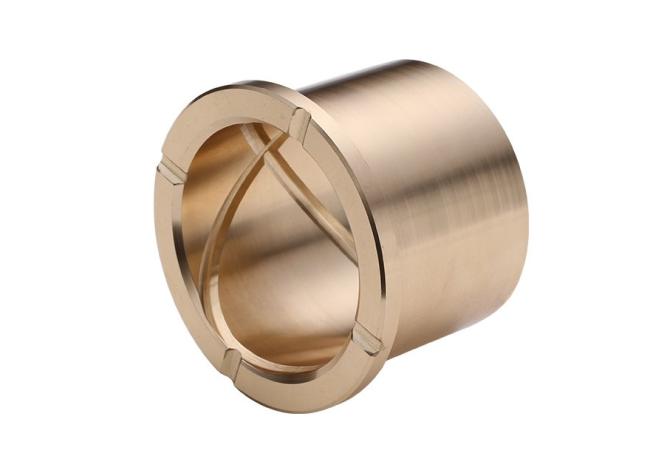

High Tensile Manganese Bronze Bush ASTM C86300 Flange Groove Bearings
High Tensile Manganese Bronze Bush, conforming to ASTM C86300 standard, is a type of flange groove bearing that exhibits exceptional tensile strength and durability. This material is specifically designed for applications requiring high load-bearing capacity and resistance to wear and tear. The manganese bronze composition ensures superior mechanical properties, making it suitable for a wide range of industrial applications.
We provide these manganese bronze bushes, high-tensile manganese bronze bushes, and aluminum bronze bushes to our customers at market leading prices.Standards C86300 Alloy
Custom Machined Parts:Bronze Bushing. Continuous and Centrifugal Casting Groove Bushing
The manufacturing of our bronze bushings is a precisely timed process.
| Chemical Requirements | ||||||||||||
| Copper Alloy UNS No. |
Composition, % max, except as indicated | |||||||||||
| Nickel | ||||||||||||
| Copper | Tin | Lead | Zinc | Iron | Including | Aluminum | Manganese | Antimony | Sulfur | Phosphorus | Silicon | |
| Cobalt | ||||||||||||
| C86300 | 60.0–66.0 | 0.20 | 0.20 | 22.0–28.0 | 2.0–4.0 | 1.0A | 5.0–7.5 | 2.5–5.0 | ... | ... | ... | ... |
| C90500 | 86.0–89.0 | 9.0–11.0 | 0.30 | 1.0–3.0 | 0.20 | 1.0A | 0.005 | ... | 0.20 | 0.05 | 0.05B | 0.005 |
| C91100 | 82.0–85.0 | 15.0–17.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C91300 | 79.0–82.0 | 18.0–20.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C93700 | 78.0–82.0 | 9.0–11.0 | 8.0–11.0 | 0.8 | 0.7C | 0.50A | 0.005 | ... | 0.50 | 0.08 | 0.10B | 0.005 |
| A In determining copper minimum, copper may be calculated as copper plus nickel. | ||||||||||||
| B For continuous castings, phosphorus shall be 1.5 % max. | ||||||||||||
| C Iron shall be 0.35 % max. when used for steel-backed. | ||||||||||||
FIND A PROCT
ASTM Standard.Material:CuSn5ZnPb5,CuZn25Al5Mn4Fe3,CuSn10Pb10,CuSn7Zn4Pb7,CuSn8.
A wide range of products which include brass bush,Heavy Duty Brass Bushes,Heavy Duty Brass Bushings,Brass Bush Supplier,Exporter in CHINA.
To meet the specific requirements of our customers, we are helping to offer a commendable range of manganese bronze bushes of different diameters. Suitable for applications with high load and low speed, the supplied rings are in great demand on the world market. The bushes offered are precisely manufactured by our skilled professionals using tested quality manganese bronze and innovative techniques.
Feature
1.Corrosion resistant
2.Good for use in high pressure applications for heavy loads.
3.The melting point of bronze is higher than other metals.
4.Hardness resistance is a quality of bronze alloys.
5.Good chemical resistant and anti-corrosion characteristics
Typical Application
Viiplus alloy copper sleeve products, excellent characteristics and performance, can be used in many fields, especially for the high strength and high wear resistance of the environment.
A wide range of industrial and civil applications, such as hydraulic pumps, automobiles, construction machinery, Marine ships, etc.
We will widely promote the application of self-lubricating bearing copper sleeve products in different industries. We are willing to provide products that can be used as part of any equipment in mechanical movement and provide appropriate solutions.
|
Material |
CuZn25Al5 |
CuSn5Pb5Zn5 |
CuAl10Ni5Fe5 |
CuSn12 |
CuZn32Al5Ni3 |
|
Density |
8 |
8.9 |
7.8 |
8.9 |
8 |
|
HB hardness |
>210 |
>70 |
>150 |
>95 |
>280 |
|
Tensile strength N/mm2 |
>750 |
>200 |
>600 |
>260 |
>540 |
|
Yeild strength N/mm2 |
>450 |
>90 |
>260 |
>150 |
>450 |
|
Elongation % |
>12 |
>15 |
>10 |
>8 |
>0.3 |
|
Coefficient of |
1.9x10-5/°C |
1.8x10-5/°C |
1.6x10-5/°C |
1.8x10-5/°C |
1.8x10-5/°C |
|
linear expansion |
|||||
|
Max. temp. |
-40~+300 |
-40~+400 |
-40~+400 |
-40~+400 |
-40~+150 |
|
Max. load N/mm2 |
100 |
60 |
50 |
70 |
150 |
|
Max. speed (Dry) m/min |
15 |
10 |
20 |
10 |
15 |
|
Max. PV |
200 |
60 |
60 |
80 |
200 |
|
N/mm2*m/min (Lubrication) |
|||||
|
Compression deformation |
<0.01mm |
<0.05mm |
<0.04mm |
<0.05mm |
<0.005mm |
|
300N/mm2 |
