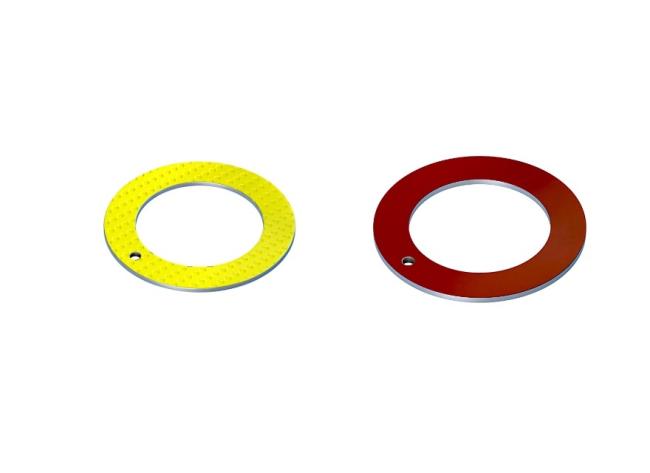

Flat Bronze Gleitlager Washer Gasket POM Coated Steel Composite For Heavy Industry
Flat Bronze Gleitlager Washer Gasket with POM-Coated Steel Composite is specifically designed for heavy industry applications. This composite material combines the strength and durability of steel with the lubricity and wear resistance of POM (Polyoxymethylene) coating, making it ideal for harsh and demanding environments. The bronze Gleitlager washer gasket ensures smooth and reliable operation, reducing friction and wear while increasing the overall efficiency of the system. Its flat design allows for easy installation and replacement, further reducing maintenance costs and downtime.
Dry sliding thrust washers with metric dimensions of triple-layer POM composite thrust washer material
Replacement for these common bearing part numbers:Metal-Polymer Bearings Bearing MW10DX.Gleitlager, Anlaufscheiben und Bandstreifen,Gleitlager buchsen & gleitlager scheiben POM/ Coated Steel Composite Flat Washer,Washer Bushing Oilless Self-Lubricating Bush Bronze/Steel+Bronze Powder+()+Polymer Plain Thin Flat Thrust Washer
DESCRIPTION
Buchse, Bundbuchsen, zylindrische Gleitlager
SIZE
|
Product Type:
|
Gleitlager POM Coated Steel Composite Flat Washer
|
|
Application :
|
The vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc
|
|
Material:
|
Steel +Bronze +POM
|
|
Max load capacity P:
|
Static load 140N/mm² / Dynamic load 70N/mm²
|
|
Max line speed V:
|
Grease lubrication 2.5m/s
|
|
PV value limit:
|
Grease lubrication 2.8N/mm²·m/s
|
|
Friction coef u:
|
0.06~0.12
|
|
Mating Axis:
|
Hardness >270HB / Roughness Ra=0.4~1.25
|
|
Working Temperature:
|
-40~+120℃
|
|
Thermal conductivity:
|
52W/(m·k)
|
|
Coefficient of linear expansion:
|
11×10-6/K
|
|
In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.
|
|
AVAILABILITY
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers
METRIC SERIES | PRELUBRICATED THRUST WASHER
