Muti functional stainless steel grinder for pepper, spice, nut, salt, sugar, chemical, herb

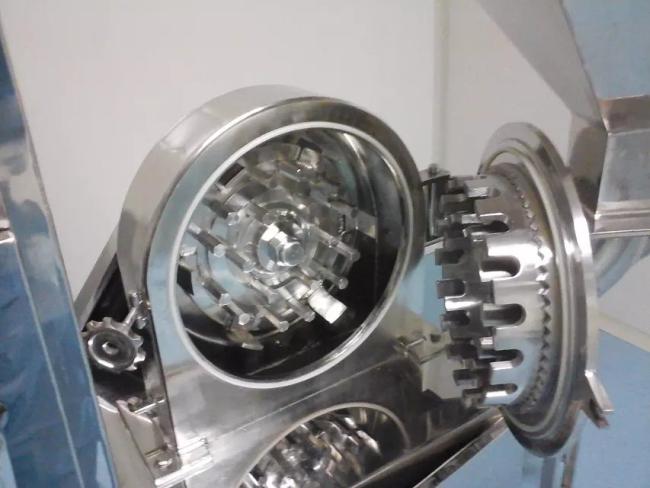

Stainless steel mutifunctional grinder structure:

1. Fixed sprocket: fixed on the door, with a large fixed sprocket.

2. Active toothed disc: There are beat teeth, main crushing teeth and grinding teeth.

3. Screen: Select the screen suitable for the aperture according to the requirements of the finished product size (mesh).

4, switch and rotation direction: green - boot red - off - the motor rotation direction is indicated by the arrow marked by the machine (reverse rotation is prohibited).

Universal crusher is suitable for pharmaceutical, chemical, metallurgy, food, construction and other industries. Processing hard and hard-to-crush materials, including pulverizing plastics, copper wire, Chinese herbal medicines, rubber, etc., and also as an auxiliary equipment for the processing of micro-grinders and superfine pulverizers. The powder collection room adopts a fully enclosed sound-absorbing structure, which can effectively reduce the working noise. The machine is equipped with a cooling device to reduce the machine temperature and make the work more stable. The motor speed of the machine is 5000 rpm. This machine is made of Icr18Ni9Ti stainless steel material and has strong wear and corrosion resistance. It is suitable for processing advanced and corrosive materials. The machine adopts the impact crushing method. After the material enters the crushing chamber, it is impacted by six movable hammers rotating at high speed. The ring gear and the material collide with each other to crush, and the crushed material enters through the sieve hole with the help of airflow. Powder bag, leaving no residue. It has the advantages of high efficiency, low noise, reliable performance and product quality, safe operation, low drug hygiene and low loss.
The material of the universal pulverizer is fed into the pulverization chamber by the feeding hopper. The impact knives and the fixed knives are simultaneously sheared and pulverized by the impact of the blade and the knife seat. The material automatically flows out from the outlet due to the centrifugal force of the rotation.
Note: Due to the large difference in materials, the difference in yield is also large.
