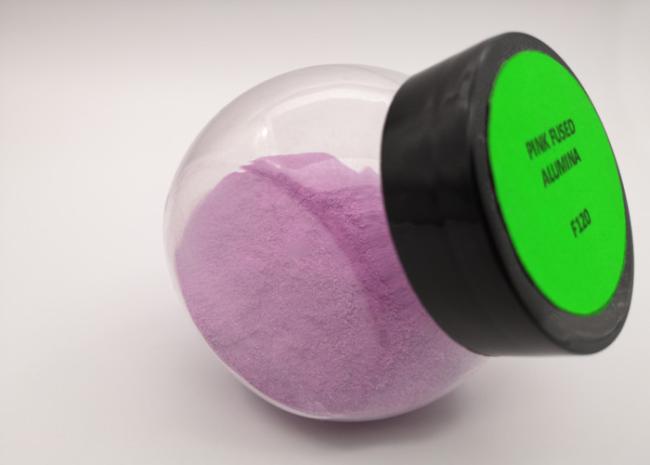

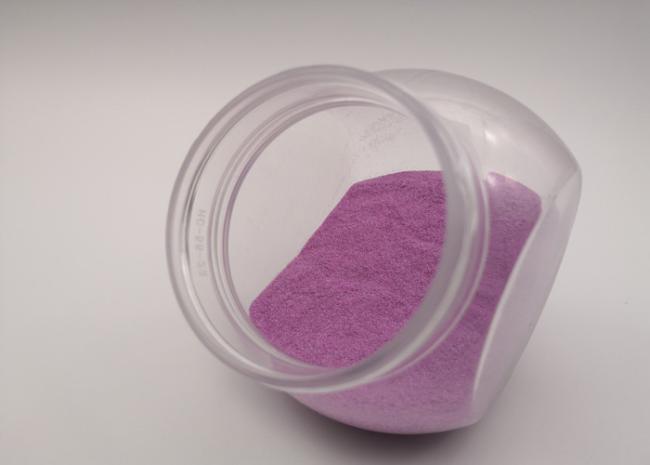

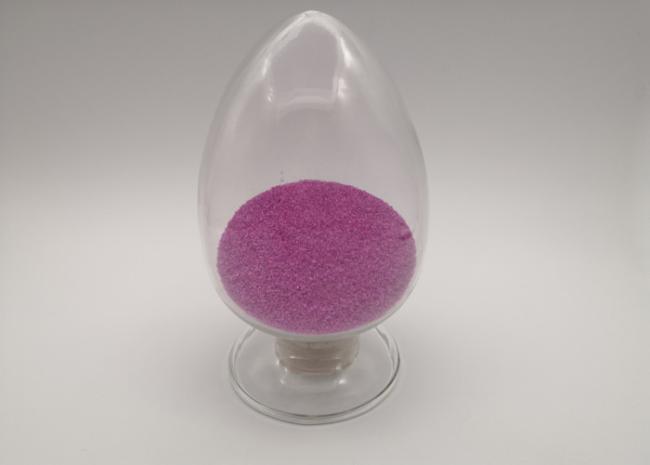

Pink Fused alumina Oxide
Product Description
Pink Fused Alumina is produced by doping Chromia into Alumina, which gives the material pink color. The incorporation of the Cr2O3 into the Al2O3 crystal lattice produces a slight increase in toughness and a reduced friability compared with White Fused Alumina.
Physical And Chemical Properties
| Items/ Chemical Composition | Unit | Medium Chrome | Low Chrome | High Chrome | |
|
Size: F12-F80 |
Al2O3 | % | 98.2min | 98.5min | 97.4min |
| Cr2O3 | % | 0.45-1.00 | 0.20-0.45 | 1.00-2.00 | |
| Na2O | % | 0.55max | 0.50max | 0.55max | |
| F90-F150 | Al2O3 | % | 98.20min | 98.50min | 97.00min |
| Cr2O3 | % | 0.45-1.00 | 0.20-0.45 | 1.00-2.00 | |
| Na2O | % | 0.60max | 0.50max | 0.60max | |
| F180-F220 | Al2O3 | % | 97.80min | 98.00min | 96.50min |
| Cr2O3 | % | 0.45-1.00 | 0.20-0.45 | 1.00-2.00 | |
| Na2O | % | 0.70max | 0.60max | 0.70max | |
| Physical Property | Basic Minerals | α— AI2O3 | α— AI2O3 | α— AI2O3 | |
| Crystal size | μm | 600~2000 | 600~2000 | 600~2000 | |
| True density | g/cm3 | ≥3.90 | ≥3.90 | ≥3.90 | |
| Bulk density | g/cm3 | 1.40~1.91 | 1.40~1.91 | 1.40~1.91 | |
| Knoop hardness | g/mm2 | 2200~2300 | 2200~2300 | 2200~2300 | |
Available sizes:
F8-F220. Other sizes can also be available according to customer’s requirements.
Product Performance
Compared with Brown Regular Aluminum Oxide,the Pink material is harder, more aggressive and has better cutting ability. The grain shape of Pink Aluminum Oxide is sharp and angular.
Application:
Used for precision grinding of measuring tools. Lathe main shafts, instruments and apparatus parts
threading work pieces
best suited for high alloy steel applications ,ideal for tool sharpening such as high speed steel cutters ,reamers, chisels end mills and sharpening band saw blades.
Recommended for tool and internal grinding
Package:
1 ) . In 1MT/1.25MT Big Bag
2 ) . 25kg PVC bag+1 MT big bag
3 ) . 25KG PP Big Bag In 1MT Big Bag Or on pallet
According To Customers' Reauirement.
FAQ:
Q : Do you provide free samples?
A : Of course! Customized samples are needed. The mass production will be started after we get your confirmation on this sample. However, shipping costs are paid by you.
Q : What is the lead time?
A : Sample needs 2-3 days prepared; Mass production time needs 15-30 days normally
Q : What is your payments term?
A : We can accept 30% deposit, 70% balance to be against the BL copy or by LC, or other payment terms.
Q : Can we visit your factory?
A : Yes, for sure, you are welcome to visit our factory. I do thing we will impressed you a lot.
