Cutomized new board 3.7V 4.2V 3A Li-ion Lithium Battery Charger Over Charge Discharge Overcurrent Protection Board
Price:
Negotiated
MOQ:
500PCS
Delivery Time:
15-20 days
Brand:
CANYI
Product Description
We accept customers' customization. Please provide us with your product details for our evaluation.
1. Please refer to this link for classic products:
http://www.schottkysignal.com/sale-13277422-12-6v-3s60a-bms-led-pcb-board-assembly-for-battery-charger.html
12.6V 3S60A BMS led pcb board design for 18650 Li-ion Battery Charger Protection Board pcb assembly prototype service
The same series of products can be obtained.
Description:- Scope of application: Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, withoutlimitation of shape and size)
- Charging Voltage: 12.6V~13.6V
- Continuous discharge current (upper limit): 60A ( if the heat dissipation environmentis not good, please reduce the use of load current )
- Continuous charging current (upper limit): 10A
- Enhanced version: suitable for electric drills with starting current below 120A and power below 260W
- Balanced version: suitable for electric drills with starting current below 120A and power below 260W, with balanced charging function
- Product Size: 41*55*3.4mm (Enhanced Version) 41*62*3.4mm (Balanced Version)
- Product weight: 8.8g (enhanced version) 9.8g (balanced version)
Conditions for successful start of electric drill:
- Successfully start the drill requires 3 10C-20C power batteries, or 6 5C-10C power batteries
- Using 0V and 12.6V connection wires, choose copper wires of 4mm2 or more, the shorter the better
-
Strictly connect 0V, 4.2V, 8.4V, 12.6V,16.8V according to the diagram. Do not touch any components on the board when soldering the wire. Do not intentionally short circuit./Do not deliberately make it short circuit.
-
Do not mix the good battery and the battery.
For more details please contact us or refer to the link attached.
2. Product information on this page:
Size: approx.12.4*10.3*3mm

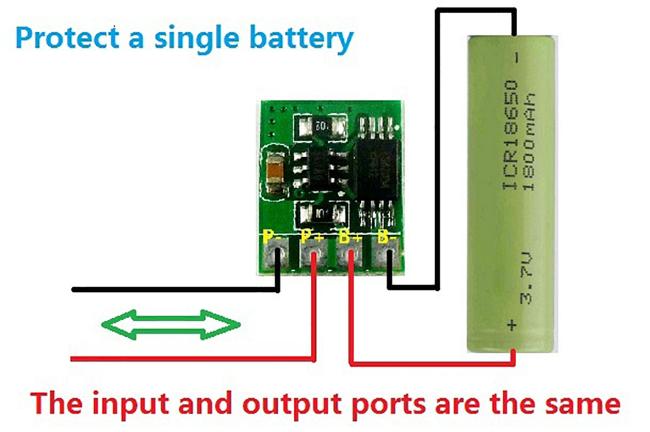

Protect single 3.7V lithium battery:

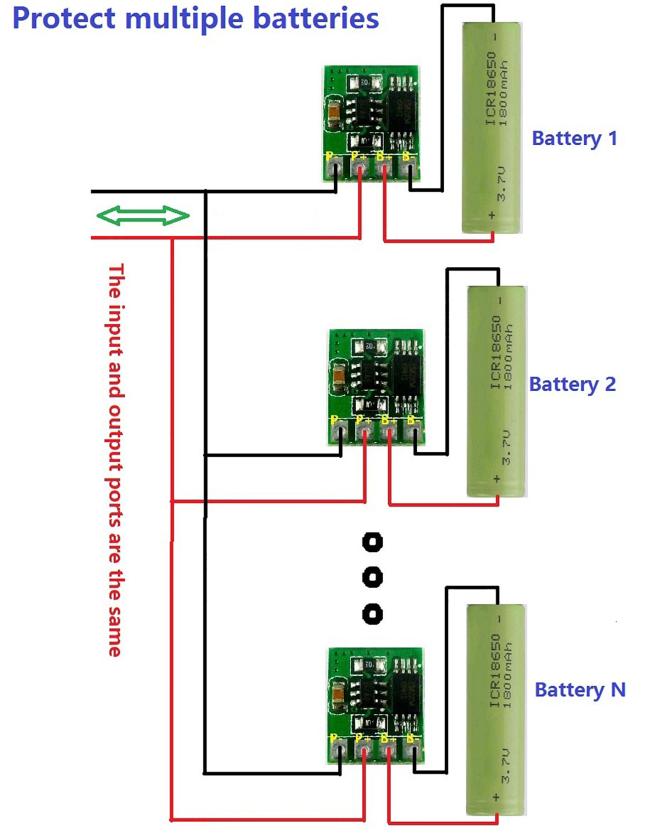

Protect multiple 3.7V lithium batteries(no more than 10pcs recommended):

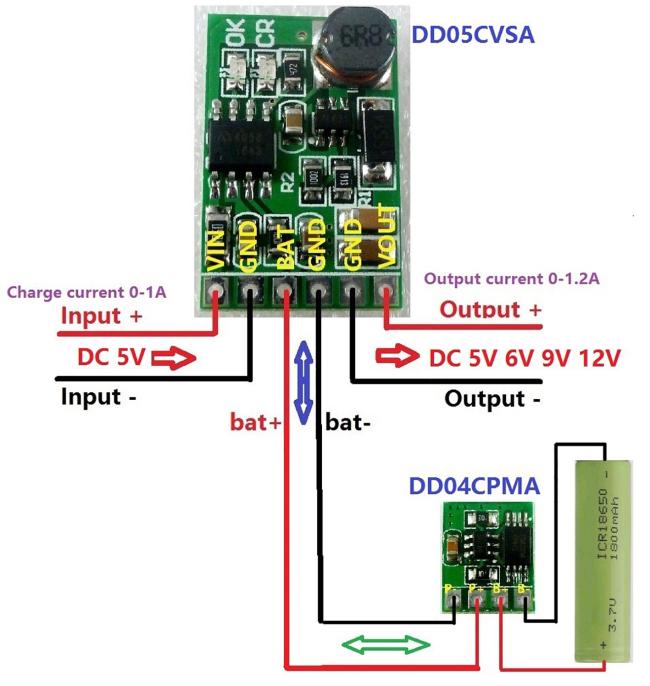

DIY mobile power(This application you need DD05CVSA
Welcome to customize the circuit board you need.
