Y-type 135 degree pneumatic three-way ball valve

Description
Y type 3-way Screw End Ball Valve
2” ~ 12” Full Port
Body: WCB,SS304,SS316,SS316L
Ball core:SS304+STL,SS316+STL
Available in y 120°-port or y 135-°port
Seats: PTFE, metal hard seal+STL


End connections:
ASME B16.34 class 150,ASME B16.34 class 300
DIN PN16,PN25,PN40
JIS 10K,20K


Pressure: PN16
Ball type can be Y-port 120/135
Media: powder, water, gas

Performance
Self Cleaning Design for option
The runner has a 120-degree switch, with the flat flow, small resistance, and strong circulation ability
Medium free of detention
Leakage: zero leakage

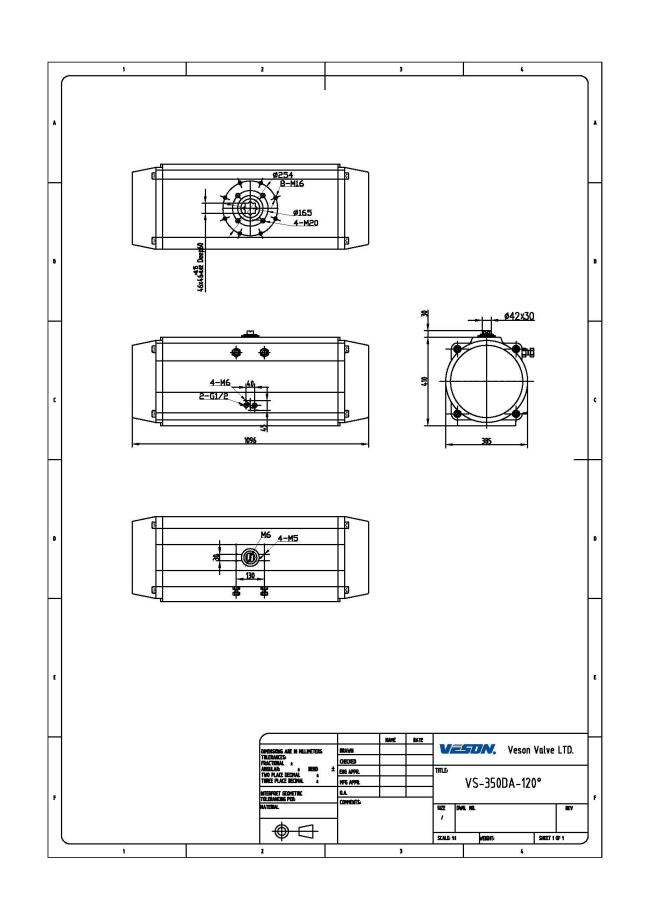

Pneumatic Actuator
Output Torque 10Nm to 8000 Nm
Control: Double Acting, Single acting normally closed, acting, Single normally open
Pneumatic accessories: Solenoid valve, limit switch box, filter, E/P positioner, hand wheel

All double acting and spring return units are suitable for both on/off and throttling applications. Actuators which can be actuated with other media such as hydraulic oil or water are also available as an option.

1, Two independently adjustable travel stop screws and a cam on the output shaft to permit precise bidirectional adjustment of movement in both the open and closed positions for quarter turn valves (+5° to -5° limit adjustment)
2, Integral porting
3, Standard units have anodized aluminum bodies with polyester coated end caps.
4, Special coatings and materials available for corrosive environments
5, NAMUR accessory compatible

Y 135° Three-way flow diagram
