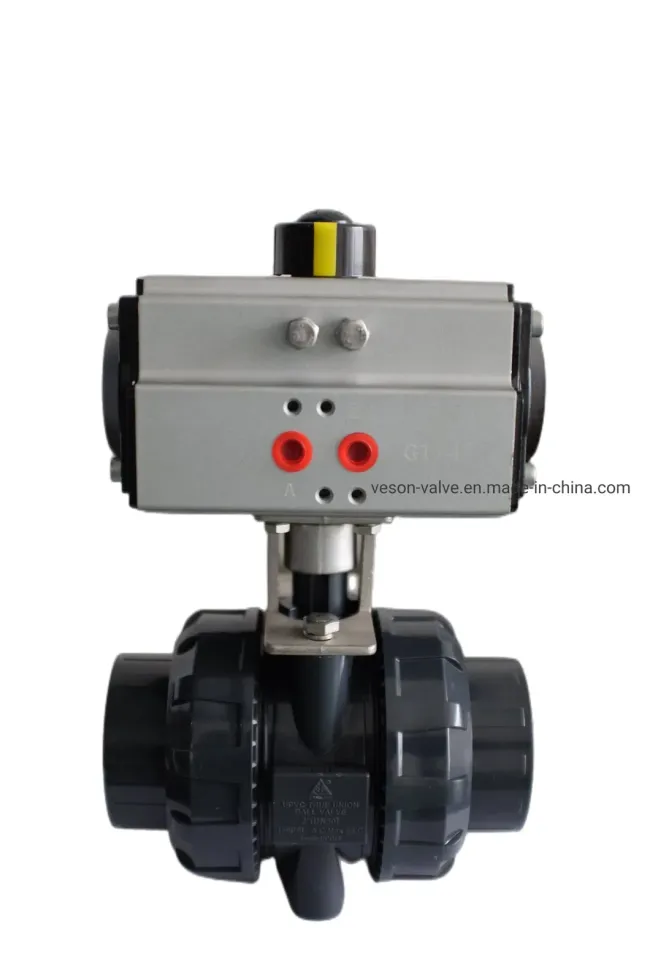

PVC Pneumatic 3-Way Ball Valve with Direct Mount Profile ISO5211 Standard for High Temperature Applications

PVC Pneumatic 3 ways ball valve Pneumatically PVC 3-way ball valve

Specifications of Pneumatic Actuator

1. Acting type: Double

2. Medium: clean, dry and without corrosive compressed air

3. Air supply pressure: 0.25 -0.8 Mpa

4. Working Temperature: Standard Type: -20°C~+80°C

Low-temperature Type: -40°C~+80°C

High-temperature Type:-20°C~+180°C

5. Rotate angle: 90°± 5°

6. Solenoid valve voltage: AC220V or DC24V , or as per customer's request.

Design & Construction Of AT Series Double Acting Pneumatic Actuator

1. Full conformance to the latest specification: ISO5211DIN3337VD/VDE3845and NAMUR.

2. The extruding high-intensity aluminum body possesses a honed internal surface coated with hone anode oxygenation for long life, low coefficient of friction and swift performance.

3. Excellent, compact and modernized construction along with multi-specifications make the selection both economic and beneficial.

4. All acting surfaces adopt high-quality bearings, resulting in low friction, high cycle life, and no noise. The two independent external travel stop adjustment bolts can easily and precisely adjust ±5°at both open and close directions.

5. The same outline actuator has the functional modes of double acting and spring return, and the spring return has the normal-open and normal-close styles.

6. Multi-function position indicator with NUMER is convenient for mounting accessories.

7. Pre-compressed load spring is convenient for safe mounting and teardown procedures.

8. Die-casting aluminum pistons and end caps have high intensity and lightweight.

9. Different O-rings materials are available for high and low temperature.

10. According to different demands we can offer Multi-travel rotations (e.g. 120°135°180°) and three position actuators.

11. Solenoid valves are easily mounted without any connecting plank.
