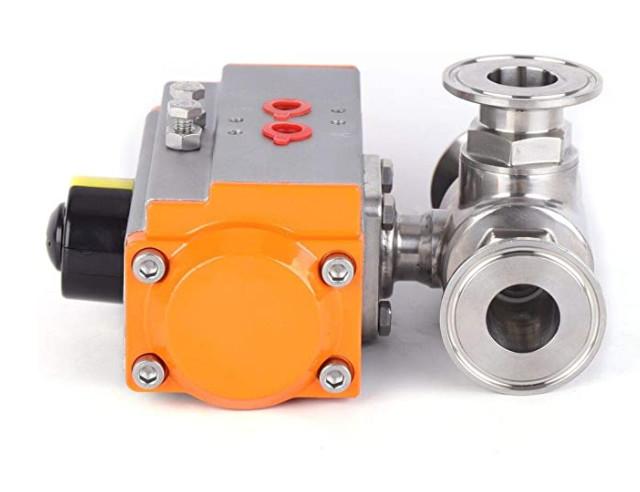

SS304 T Type Three Clamp Pneumatic Ball Valve 250mm Encapsulated
Price:
Fob Shanghai ,EXW
MOQ:
1
Delivery Time:
5-8 days
Brand:
VESON
Product Description
Pneumatic Butterfly Valves
Our heavy duty sanitary pneumatic butterfly valves are an excellent solution as an on-off service, or for flow control. Air pressure actuation is used to open and close the valve. Additional features include:
- Stainless steel SS304 Valve & Body
- Fireproof
- Long Life Span
- Maintenance-free Pneumatic Mechanism
- Normal closing / opening time at 80 PSI is less than 1 second
- Tested at over 100,000 cycles
- Visual Indicator to show valve position
- Also available in air/air
- Suitable for normal and closed applications
Pneumatic Ball Valves
Our heavy duty pneumatic ball valves are excellent solution as an on-off service, or for flow control. Air pressure actuation is used to open and close the valve. Additional features include:
- Precision 2-way Pneumatic Encapsulated Ball Valve
- Encapsulated PTFE seats and Tri Clamp connection
- In-line designed for maximum flow capacity
- Valves may be installed at any position
- SS316 stainless steel ball
- PTFE Gasket Complies to PTFE FDA 177.2600
- Full Port Design
- Rated to 1,000 PSI WOG
- Completely Rebuildable
- 60-90 PSI Operating range
Description:
Stainless steel 304 sanitary three-way T-type three-clamp pneumatic ball valve is suitable for stainless steel pipe system, suitable for food, beer, dairy, brewing, pharmaceutical, chemical industry drainage and other industries. The temperature reached 150 °C.
Product parameters:
Material: SUS 304 stainless steel
Port size: 1" (Φ25), 1.5" (Φ40), 2" (Φ50)
Sealing material: PTFE
Connection: clamping
Surface finish: <0.4μm
Applicable temperature: -10 ° C ~ + 120 ° C
Working pressure: 0-1.6 MPa / 232 psi
Applicable medium: water, oil
Operation: Pneumatic
Stainless steel 304 sanitary three-way T-type three-clamp pneumatic ball valve is suitable for stainless steel pipe system, suitable for food, beer, dairy, brewing, pharmaceutical, chemical industry drainage and other industries. The temperature reached 150 °C.
Product parameters:
Material: SUS 304 stainless steel
Port size: 1" (Φ25), 1.5" (Φ40), 2" (Φ50)
Sealing material: PTFE
Connection: clamping
Surface finish: <0.4μm
Applicable temperature: -10 ° C ~ + 120 ° C
Working pressure: 0-1.6 MPa / 232 psi
Applicable medium: water, oil
Operation: Pneumatic
