Anodized Aluminum Pneumatic Air Actuator With Limit Switches

Veson valve ltd 3 position pneumatic actuators provide an operation of 0°- 45°- 90°. The intermediate position is achieved by an external mechanical stop of movement on the 2 auxiliary pistons (for spring return actuators it may be only one auxiliary piston).

This intermediate stop position is adjustable from 0° to 90°, for example 5°, 20°, 30° 50°, 75° etc. The intermediate position is easily achieved by adjusting the external nuts located outside the two end-caps. Both type, double acting and spring return, are available. Field of application: For dosing, for exact filling and for any kind of services where on 90° rotation an intermediate stop position is desired

ACTUATORS

Pneumatic “DA” and “SR” Series

Type:

DA series is double acting and SR series is spring return (rack and pinion).

Normal Supply Pressure:

DA: 40 to 115 psi (2.7 to 7.9 bar); SR: 80 psi (5.5 bar).

Maximum Supply Pressure:

120 psi (8.6 bar).

Air Connections:

VS-032DA/SR series: 1/8" female NPT; VS-052DA/SR series: to VS-092DA/SR series:: 1/4" female NPT;

Housing Material:

Anodized aluminum body and epoxy coated aluminum end caps.

Temperature Limits:

-40 to 176°F (-40 to 80°C).

Accessory Mounting:

NAMUR standard.

Application :

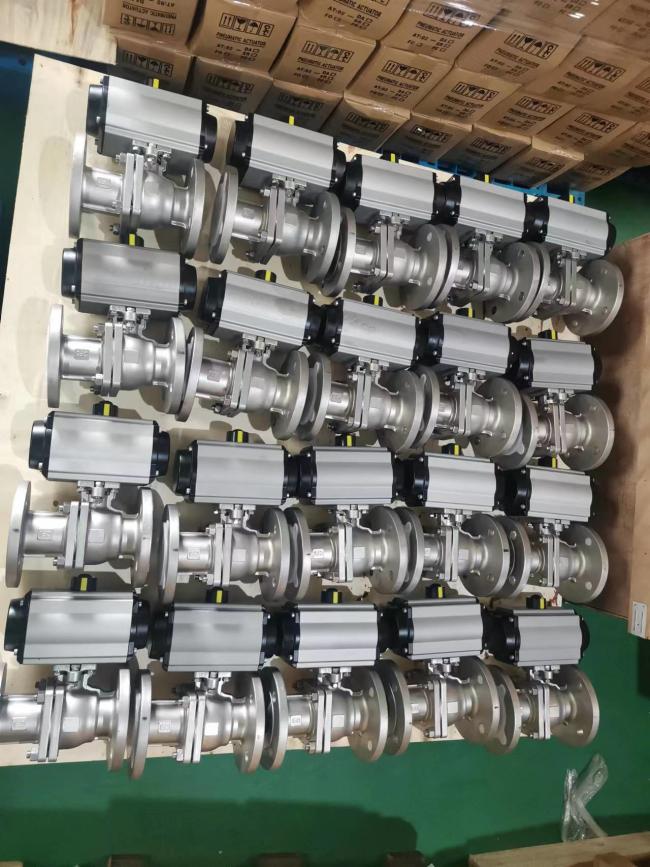

workshop:

Veson Valve Ltd. products include: VS series rack pinion rotary pneumatic actuator, VSF scotch yoke pneumaticactuator and

hydraulic actuator, linear pneumatic actuator, gas over oil actuator, actuated valves and actuated butterfly valves. Up to now,
