Replacement Molex 4 Position Female Connector MX150 33472 Series 33472-0401 33472-4001
Replacement Molex 4 Position Female Connector MX150 33472 Series 33472-0401 33472-4001
Description
YBADDVANCE connector will replace molex MX150 33472 series Receptacle Crimp Housing for MX150 sealed connector system. It has reduced 3.50mm pitch housing design, supports dual-row configurations for 4, 6, 8, 12, 16 and 20 circuit.The Connector will be used for Automotive, Commercial Vehicle, Industrial.
Of course,YBADDVANCE also will provide the crimp terminals and rubber seals together.
Specification
|
Item name |
4 Positions Female Connector |
| P/N | 33472-0401 33472 33472-4001 33472-4101 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40~120 |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin molex Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Number of Rows | 2 |
| Featured Product | Commercial Vehicle Products |
| Application | Automotive, Commercial Vehicle, Industrial. |

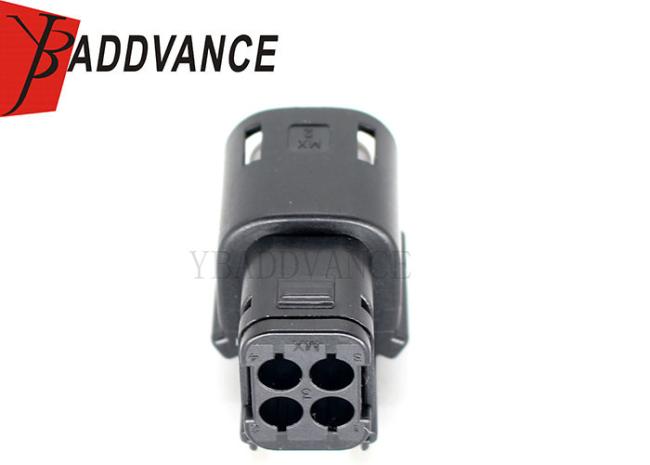

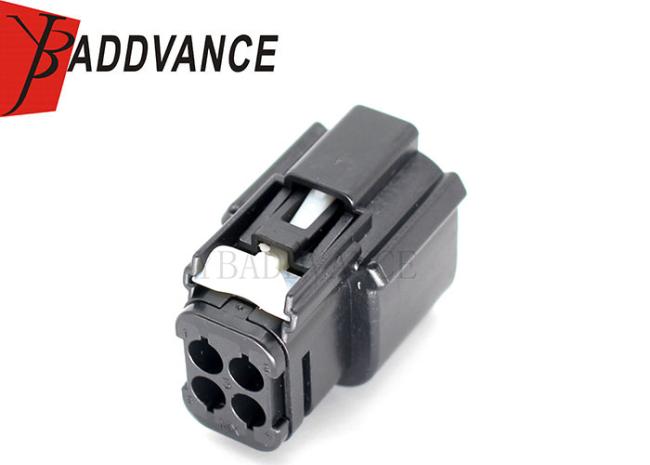

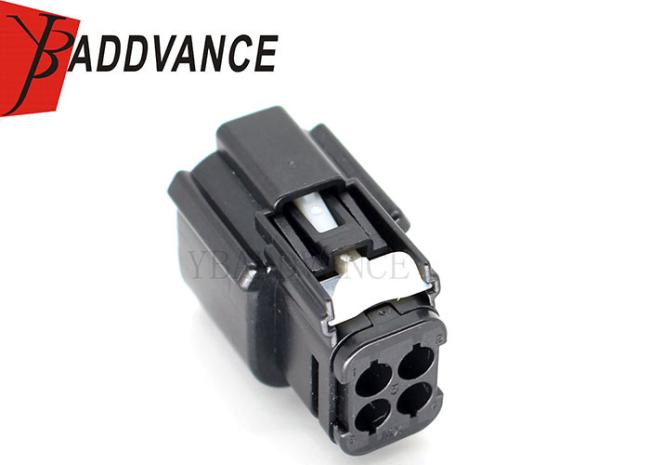

Product Picture Details
