Black Color 16 Pin Waterproof Connector Furukawa FW 090 Series FW-C-D16F-B
16 Pin Furukawa FW 090 Series Waterproof Connectors FW-C-D16F-B
Description
These sealed connectors are highly reliable in YBADDVANCE. Commonly found on Kawasaki, Suzuki. Also used for Subaru Impreza WRX Sti - COP Ignition coil Connector.
It come with an inner Seal, and seals for each wire.
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
They also have a secondary locking mechanism that detects when terminals are not inserted completely, that prevent misalignment, and shorts between Terminals.
These are replacement high quality parts. Not cheap imitations.
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
16 Pin Furukawa FW 090 Series Waterproof Connectors FW-C-D16F-B |
| P/N | FW-C-D16F-B |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
16 pin Furukawa connectors |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 16 hole |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

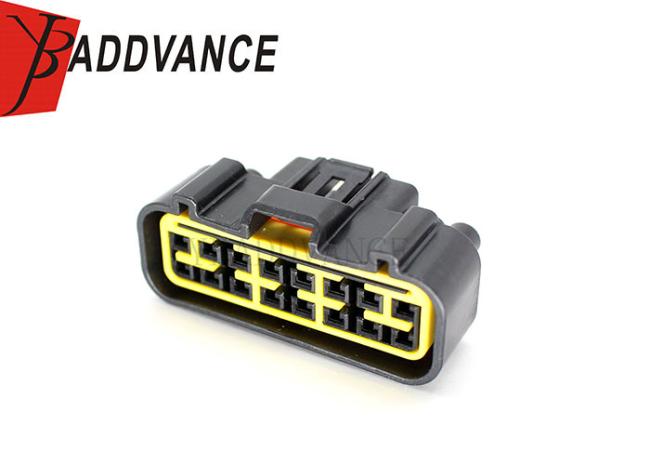

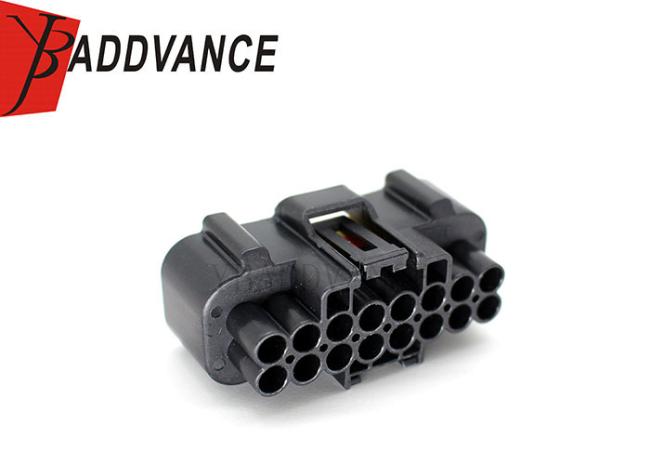

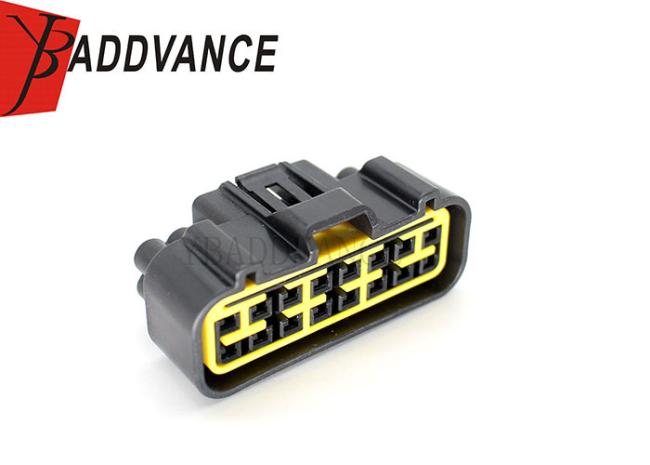

Product Picture Details
