18 Hole Tyco AMP Connectors , TYCO HDSCS Connector 1-1563759-1 Black Color
18 Pin AMP TYCO TE CONNECTIVITY HDSCS Series Connector 1-1563759-1
Description
HDSCS housings are heavy-duty, environmentally sealed connectors available in five sizes and arrangements from 2 to 18 cavities.
These HDSCS receptacle connector housings feature integrated secondary locks which conform contact alignment and retention producing an audible click when in the fully locked position.
A slide lock assists with the mating and unmating process and provides a secure mating connection.
They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.
We also can make the wire if you need it
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These are replacement high quality parts.
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
18 Pin AMP TYCO TE CONNECTIVITY HDSCS Series Connector 1-1563759-1 |
| P/N | 1-1563759-1 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
18 pin AMP/Tyco connectors |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 18 hole |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

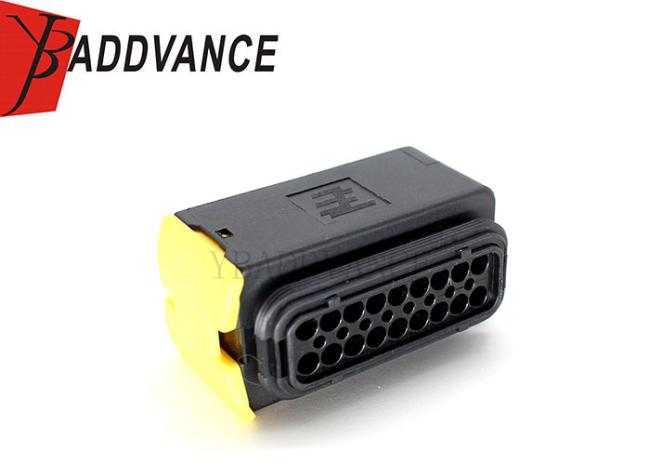

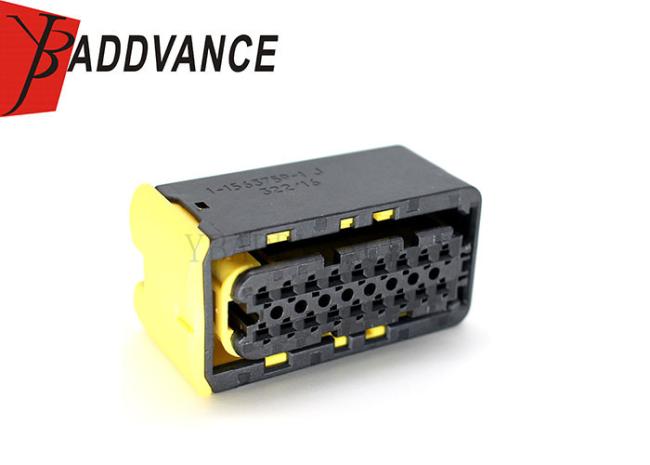

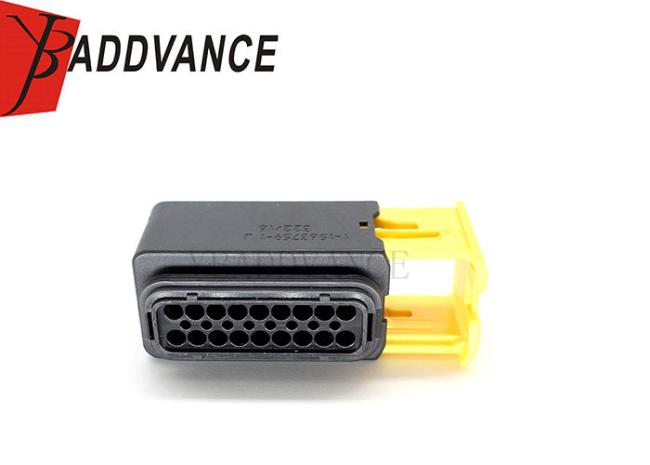

Product Picture Details
