Molex MX 150 16 Pin Female Connector Black 33472-1601 33472-1740
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
Molex MX 150 16 Pin Female Connector Black 33472-1601 33472-1740
Description
16 Way Automotive Connector Terminals and seals are included and the following will show all the kits we provided.
1 X Connector Housing
1 X Connector locking clip
1 X Wire seals
1 X Crimp pins
Specification
|
Application |
For car automotive |
| P/N | 33472-1601 33472-1740 |
|
Overview |
Molex 150 Sealed Connectors |
| Material | PBT |
| Lock to Mating Part | Yes |
|
Operating Temperature range |
-40~120 |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
Molex 16 pin Female Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 16 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

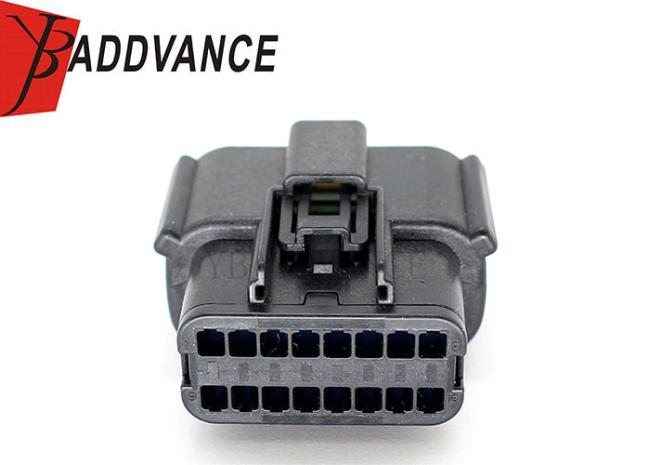

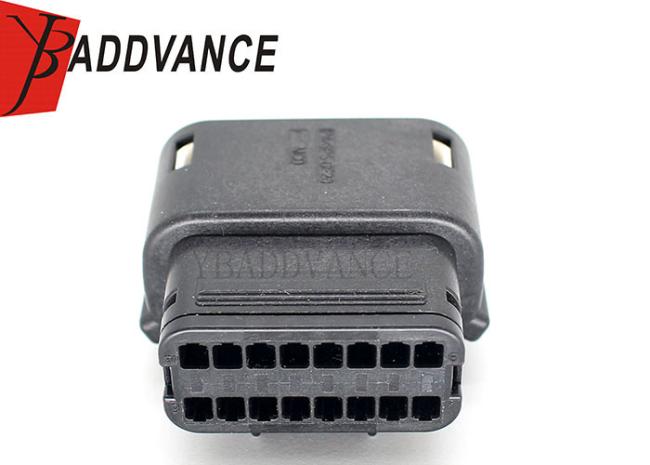

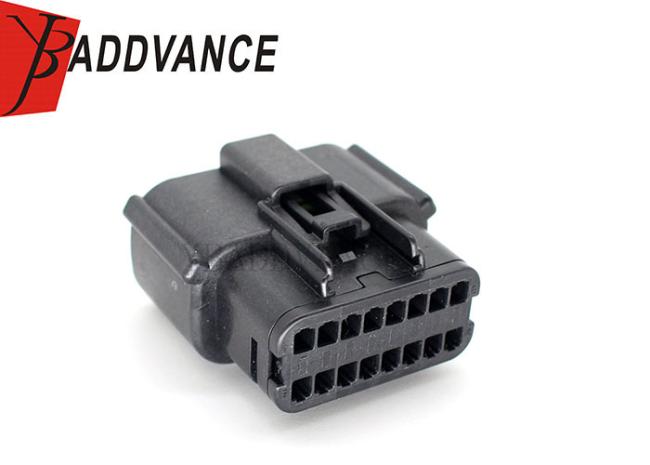

Product Picture Details
