12 Hole AMP TYCO HDSCS Series Waterproof Connector 1-1564520-1

Price Negotiable

Price: Negotiation

MOQ: 100 units

Delivery Time: About 5-8 work days

Brand: YBADDVANCE

Product Description

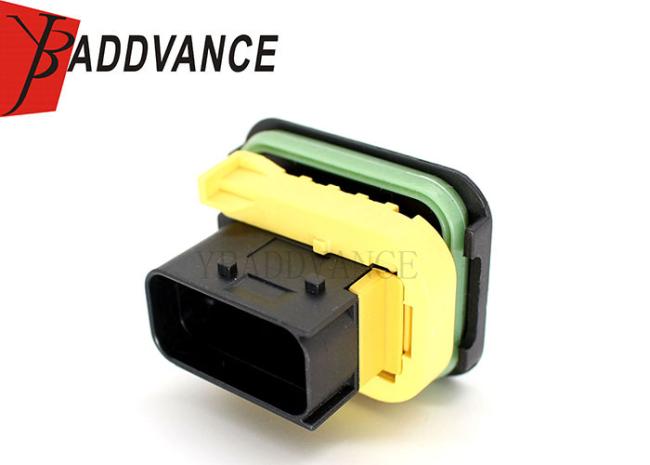

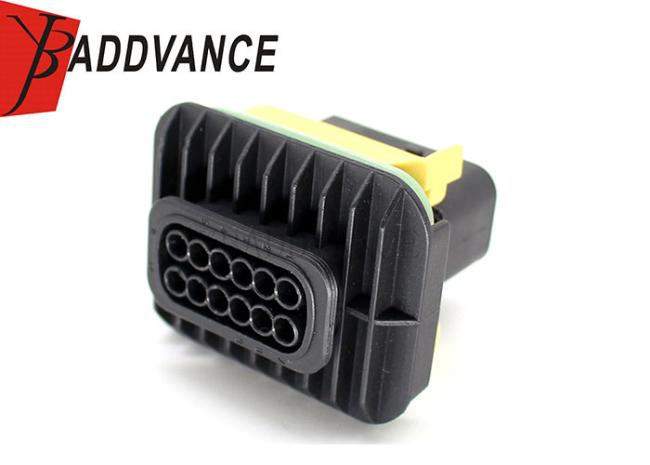

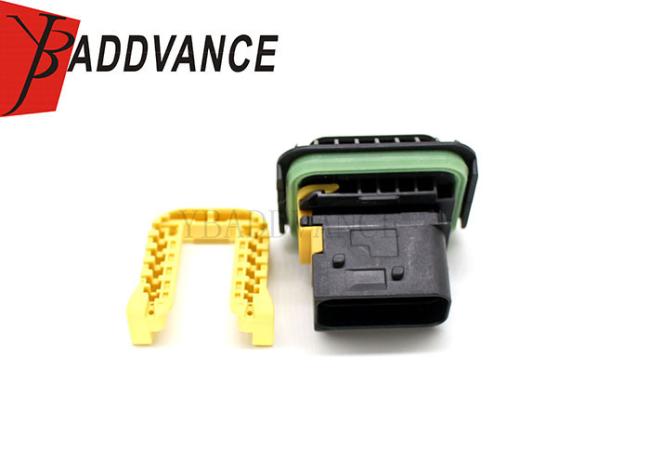

12 Hole AMP TYCO HDSCS Series Waterproof Connector 1-1564520-1

Description

12POS,TAB 1.6X0.6,TAB HSG,ASSY AMP TYCO HDSCS Series Connector

HDSCS housings are heavy-duty, environmentally sealed connectors available in five sizes and arrangements from 2 to 18 cavities.

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.

They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.

These connectors come with the terminals and seals

We also can make the wire if you need it .

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name	12 Hole AMP TYCO HDSCS Series Waterproof Connector 1-1564520-1
P/N	1-1564520-1
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	12 pin AMP TYCO connectors
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	12 hole
Color	Black
Warranty	1 year
Application	Automotive Motorcycles
