3 Pin Female Tyco AMP Connectors 2.5 Mm Socket Round HSG Connector 1-1813099-3
3 Pin Female 2.5 mm Socket HSG Assembly Round Connectors 1-1813099-3
Description
1-1813099-3 3 Pin circular DIN connectors are available in 2-7 cavity arrangements and accept contact sizes 2.5 mm (up to 40 amps) or 1.5 mm (up to 30 amps).
They feature a coupling ring for mating and offer in-line, flange, or PCB mounting options.
These connectors come with the terminals and seals
YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
3 Pin Female 2.5 mm Socket HSG Assembly Round Connectors 1-1813099-3 |
| P/N | 1-1813099-3 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin AMP TYCO connectors |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 hole |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

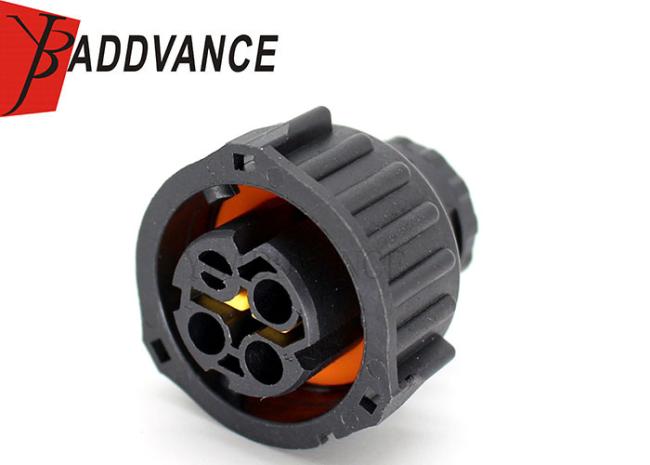

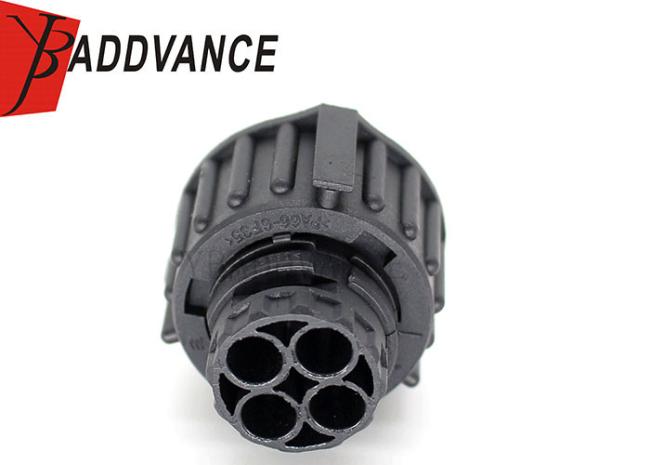

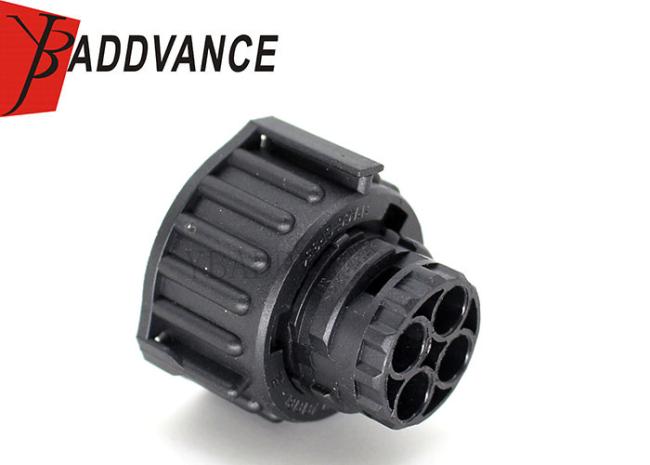

Product Picture Details
