7 Way Sumitomo Electric Connectors , Automotive Waterproof Electrical Connectors 6098-0148
7 Way Sumitomo Electrical Waterproof Connector for N issan 6098-0148
Description
Sumitomo Electrical Waterproof Connector for N issan
Air Flow Meter Connector (AFM ) Connector For Skyline R32 RB20DE, RB20DET and RB25DE
These connectors come with the terminals and seals
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
We can make the wire if you need it
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
7 Way Sumitomo Electrical Waterproof Connector for N issan 6098-0148 |
| P/N | 6098-0148 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
7 pin connectors |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 7 hole |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Car |

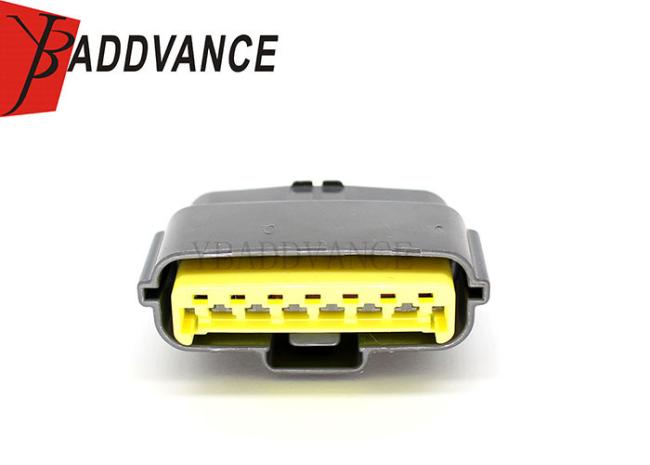

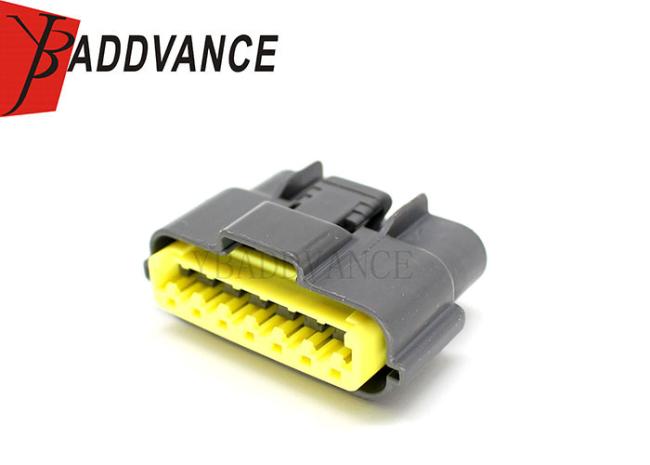

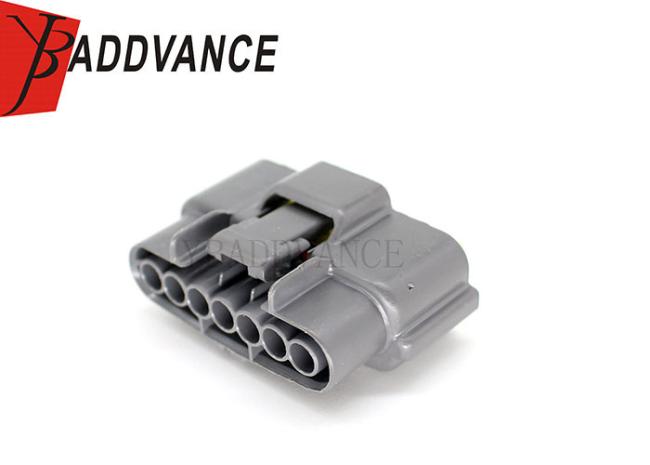

Product Picture Details
