4 Pin TS Series Sumitomo Waterproof Receptacle Connector 6188-0066
4 Pin TS Series Sumitomo Waterproof Receptacle Connector 6188-0066
Description
4 Pin TS Series Sumitomo Waterproof Receptacle Connector
Height: 27.7 mm
Width : 21.8 mm
Length : 37.7 mm
Contact resistance :Initial 3mΩ Max.
after durability 10mΩ Max.
Leak current : 100μA Max.
Insulation resistance: 100MΩ Min.
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.
Including :1 Houisng +4 Pins + 4 Seals
We can make the wire if you need it .
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
4 Pin TS Series Sumitomo Waterproof Receptacle Connector 6188-0066 |
| P/N | 6188-0066 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

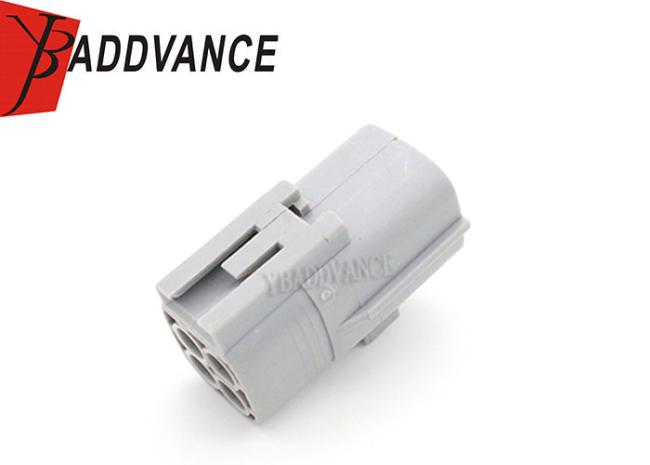

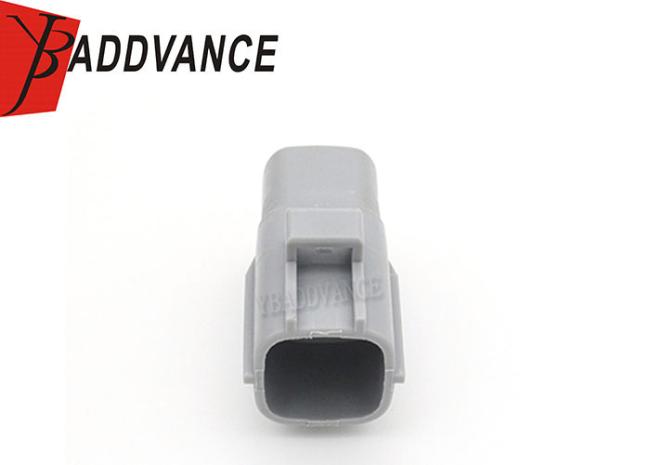

Product Picture Details
