Black Metri Pack 150 Connectors 4 Hole Female 12162144 Waterproof
4 Hole Female Black D elphi 150 Metri-Pack Connector 12162144
Description
4 Hole Female Black D elphi 150 Metri-Pack Connector
Metri-Pack 150 sealed female automotive connectors with triple rib silcone rubber seals for environemntal protection.
These Metri-Pack 150 sealed female automotive connectors have a low energy, low voltage capability, a maximum continuous current of 14 A
Typical applications for these Metri-Pack 150 automotive connectors include critical low energy electronic underhood vehicle applications where environmental protection is essential.
Height : 21.8 mm
Width : 35 mm
Depth: 26 mm
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
4 Hole Female Black D elphi 150 Metri-Pack Connector 12162144 |
| P/N | 12162144 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

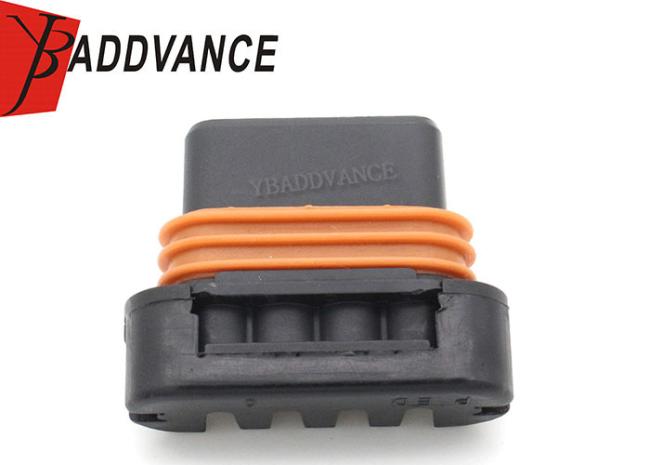

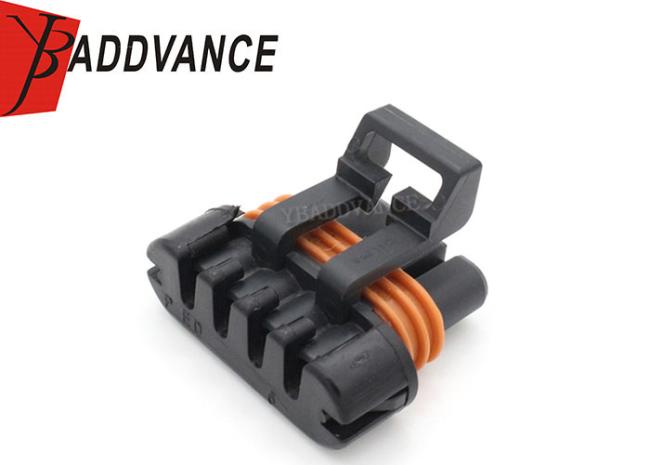

Product Picture Details
