Metri Pack 150 Series Weather Pack Connector 12162261 12066317 12162210
6 Way Female D elphi Metri Pack 150 Series Connector 12162261 12066317 12162210
Description
6 Way Female D elphi Metri Pack 150 Series Connector
The Metri-Pack Series 150 Sealed connectors are available with 1 to 10 cavities with contacts to suit two cable sizes (0.35-0.50 and 0.50-1.00mm2) catering for up to 14 Amps.
The 6 pin Connector Assembly are part of the 150.2 Pull-to-Seat variation which are specifically-designed for vehicle device applications.
Height : 15 mm
Width : 27.5 mm
Length :30.1 mm
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
6 Way Female D elphi Metri Pack 150 Series Connector 12162261 12066317 12162210 |
| P/N | 12162261 12066317 12162210 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

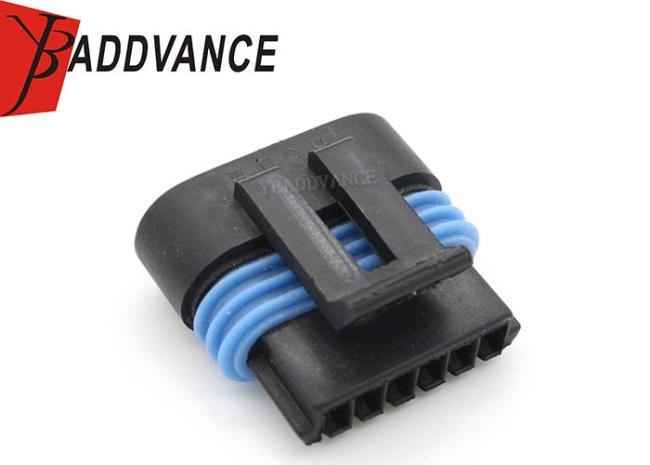

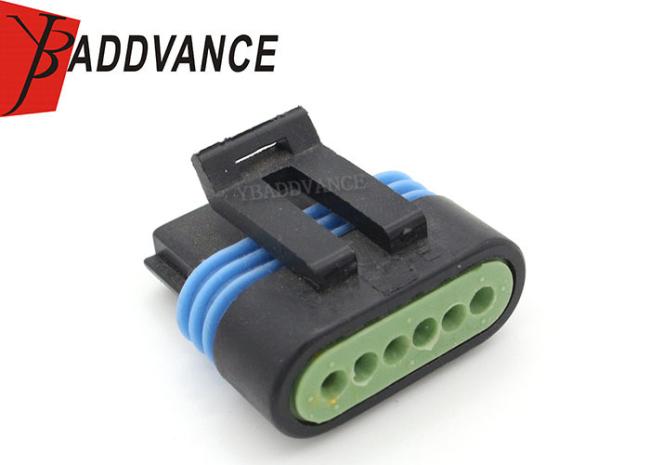

Product Picture Details
