5 Hole 1 Row Weather Pack Connector Metri Pack 150.2 Sealed Receptacle Connector 12162825
5 Hole 1 Row Metri-Pack 150.2 Sealed Receptacle Connector 12162825
Description
5 Hole 1 Row Metri-Pack 150.2 Sealed Receptacle Connector
This connector mates to the D ELPHI Metripack series 150.1 and 150.2 pull to seat – and GT series 1.5mm connectors.
The Metri-Pack Series 150 Sealed connectors are available with 1 to 10 cavities with contacts to suit two cable sizes (0.35-0.50 and 0.50-1.00mm2) catering for up to 14 Amps.
The Connector Assembly are part of the 150.2 Pull-to-Seat variation which are specifically-designed for vehicle device applications.
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
5 Hole 1 Row Metri-Pack 150.2 Sealed Receptacle Connector 12162825 |
| P/N | 12162825 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
5 pin sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 5 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

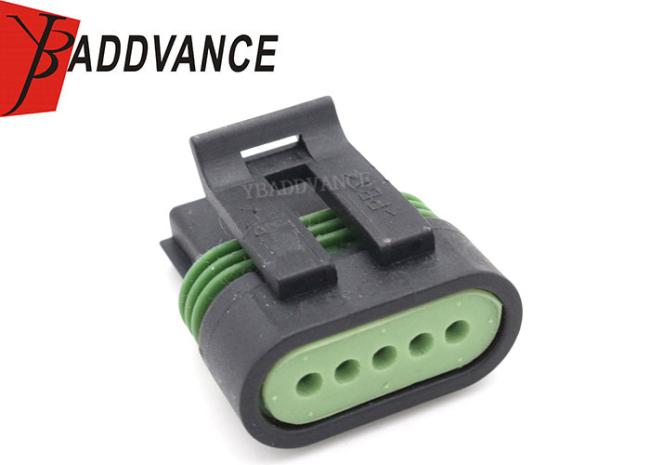

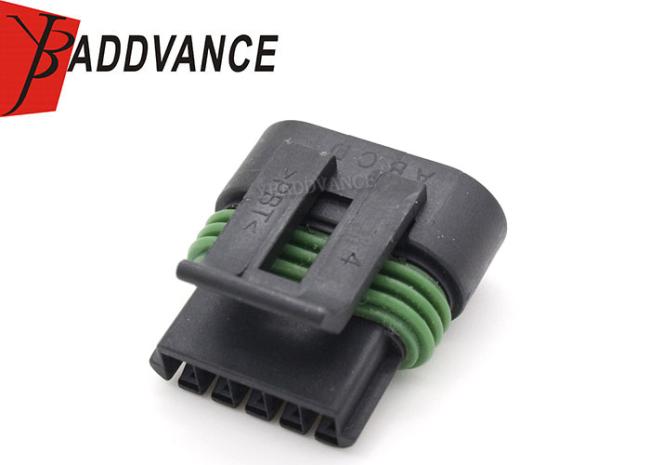

Product Picture Details
