2 Way Male TE Connectivity Ampseal 16 Connector with Terminals 776428-1

Description

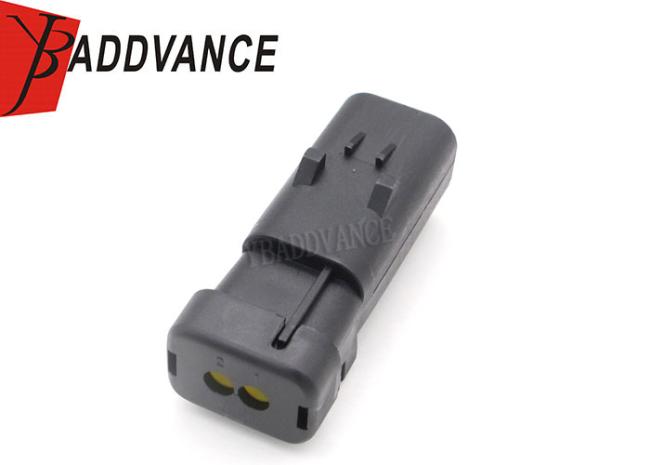

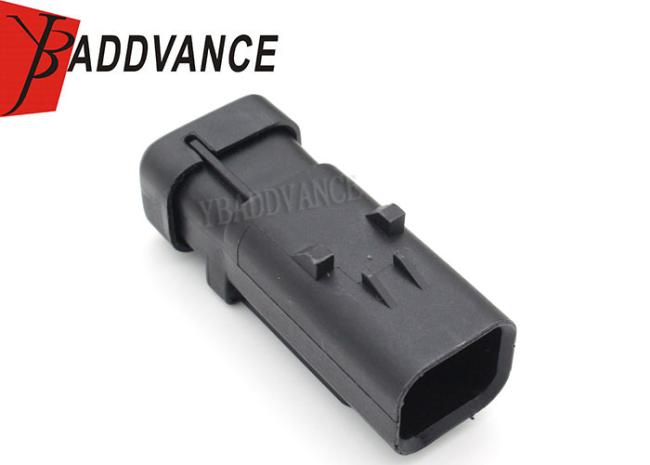

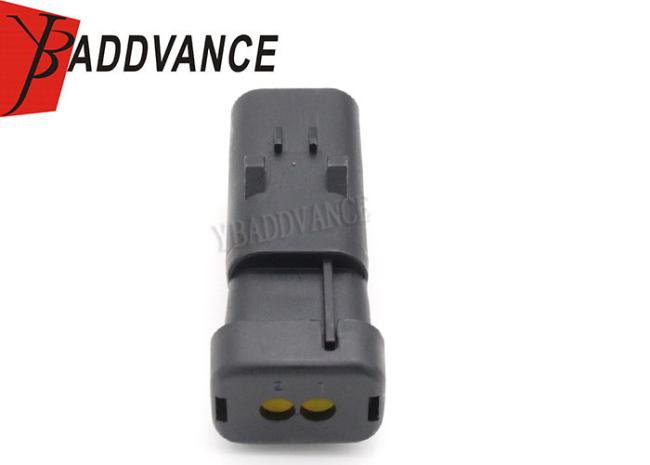

2 Way Male TE Connectivity Ampseal 16 Connector with Terminals 776428-1
These AMPSEAL automotive receptacle style connectors have a standard diameter wire seal and accept a wire size range of 2.18 to 3.67 mm.

It is accept up to 2 pins or sockets to make a solid connection between wires which may need to be occasionally disconnected
These Plugs and Caps use an easily identified, color coded keying system to ensure that connectors are not mis-mated in applications where multiple connector assemblies are used.
Height: 18.93mm
Width: 19.6mm
Depth: 47.55mm

Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

These connectors come with the terminals and seals

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Product Picture Details
