Tyco AMP SEAL 16 Series 3 Way Sensor Connector For Excavator Harness 20-18AWG 776523-1
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
Tyco AMPSEAL 16 3 Way Sensor Connector For Excavator Harness 20-18AWG 776523-1
Description
Tyco AMPSEAL 16 3 Way Sensor Connector For Excavator Harness 20-18AWG 776523-1
This connector kits come with terminals together and will be provided by YBADDVANCE.
It's in stock and we can post you right away.
Pin Number:3
Color: Black
Terminal of Pitch:1.6mm
Specification
|
Item name |
Tyco AMPSEAL 16 3 Way Sensor Connector For Excavator Harness 20-18AWG |
| P/N | 776523-1 |
|
Wire Size |
18-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Width |
24.83mm |
|
Height |
23.47mm |
| Depth |
39.95mm |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 Hole |
| Color | Black+Red |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
More Connector
| Amp Tyco Connector | Description | Fit For |
| BC7014-3.5-21 | 1 pin 3.5 Series EV1 Female Fuel Injector Connector |
|
| 7-1866487-1 | 34 Pin Female Sealed ECU Connector Wire Loom A |
|
| 8E0972416 | 16 pin female | For VW Audi |
BC7039 |
6 pin female | For Truck |
| 770680-1 | 23 pin male | |
| 776231-1 | 35 pin male Straight | For Truck Bus |
| 1-1718806-1 | 5 pin female | |
| 368537-1 | 12 pin male | |
| 5273338 | 12 pin female 1.5K Series |

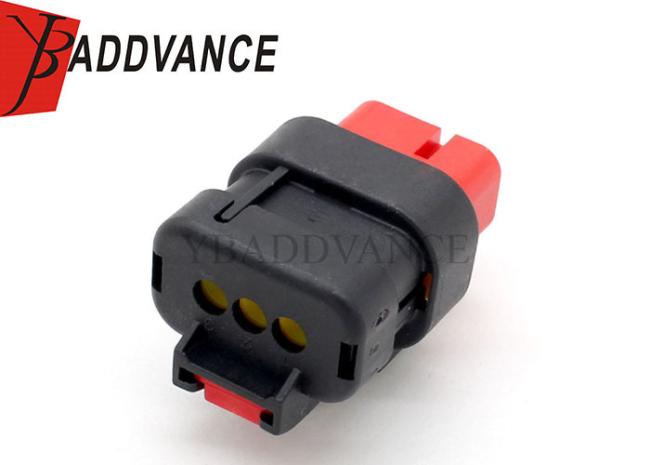

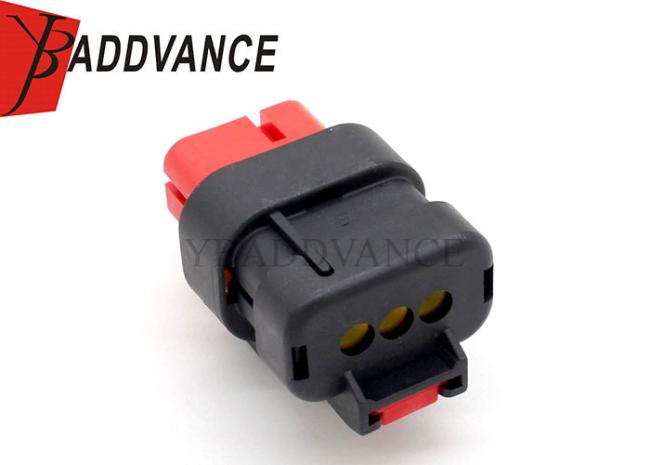

Product Picture Details
