6189-0249 Sumitomo Sealed Connectors Evo Mivec 2 Pin Female 90980-11156 For Toyota 1JZ-GTE
Sumitomo 6189-0249 Evo Mivec 2 Pin Female Connector 90980-11156 For Toyota 1JZ-GTE
Product Description

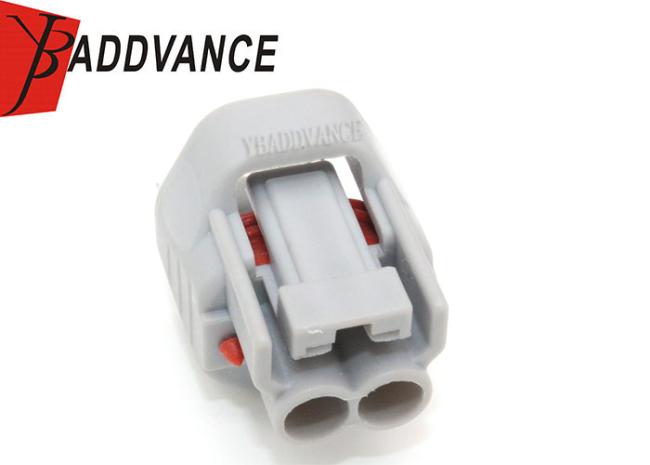

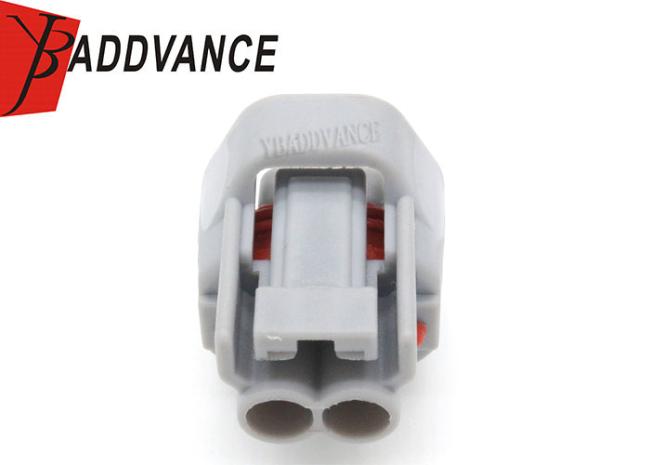

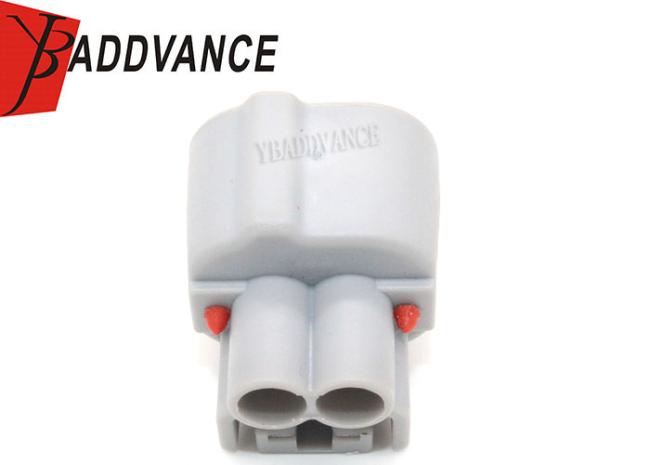

Sumitomo TS Sealed Series 2 Pin female connector Fits wires from .5mm - 1.25mm (22 - 16 AWG) and come with plastic housing with inner seal, wire seals and terminals on each wire.
NOTE - notch is on left bottom side(Left Keyway)
Mating parts 6188-0266(TS sealed series)
Terminal
2.3mm 8100-0460
2.3mm 8100-1344
2.3mm 8100-0461
2.3mm 8100-0594
Wire seals
2.3mm 7165-0842
2.3mm 7165-0349
2.3mm 7165-0395
2.3mm 7165-0351
Specification
| Keywords | 2 Pin female connector for Toyota |
| Original Number | 6189-0249 90980-11156 |
| Series | Sumitomo TS Sealed Series |
| Male/Female | female |
| Material | PBT |
| Number of Rows | 1 |
| Contact resistance |
Initial |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| seal |
Initial |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Gray |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
