6 Pin Female TPS Throttle Position Sensor Connector For Toyota 7283-1968-30 90980-11858
6 Pin Female TPS Throttle Position Sensor Connector For Toyota 7283-1968-30 90980-11858
Description
YBADDVANCE 6 Way TPS Connector Kit, Black - 90980-11858. Terminals and seals ARE included. This connector is used on many Japanese vehicles as a Throttle Body connector, Throttle Postion Sensor Connector, Ignition connector, and other applications. For Toyota & Mazda and so on...
1 X Connector Housing
1 X Inner seal
6 X Wire seals
6 X crimp terminals
Specification
|
Item name |
6 Pin TPS Throttle Position Sensor Connector |
| Part Number 1 | 7283-1968-30 |
| Part Number 2 | 90980-11858 |
|
Wire Size |
16-22AWG |
|
Operating Temperature range |
-40~125 deg.C |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Tab Width mm(inches) |
2.3(090) |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| Number of way | 6 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

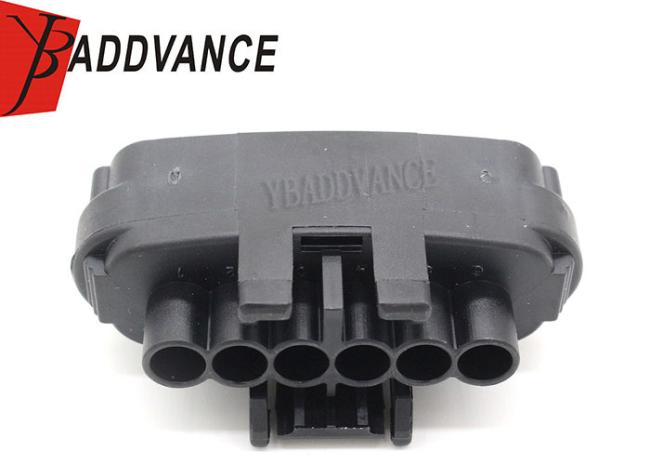

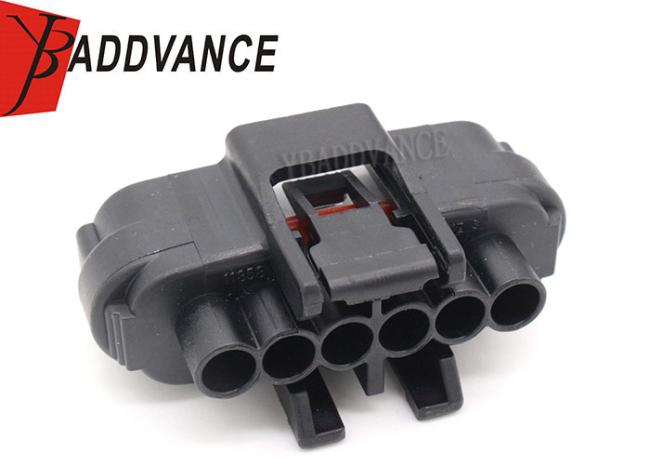

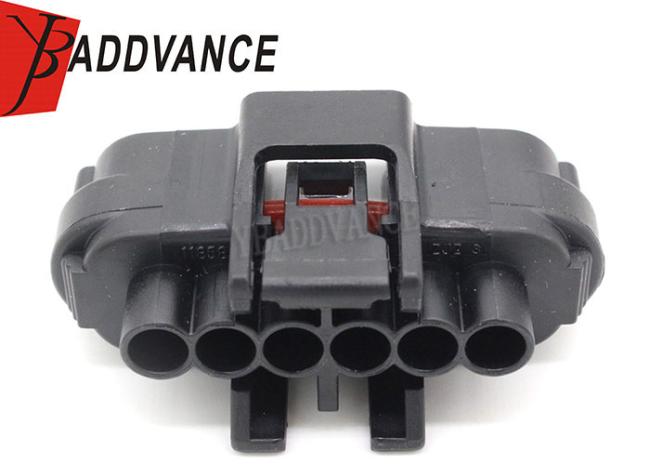

Product Picture Details
