Description
4 Way Male Sumitomo RS Series 090 Waterproof Connector
Length : 42. mm
Width: 22.2 mm
Height : 26.2 mm
Wire Gauge (Max):22 AWG
Wire Gauge (Min): 18 AWG
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Including : 1 housing +4 terminals +4 seals +1 lock
Seal: Silicon Rubber
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
4 Way Male Sumitomo RS Series 090 Waterproof Connector 6188-0558 |
| P/N | 6188-0558 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

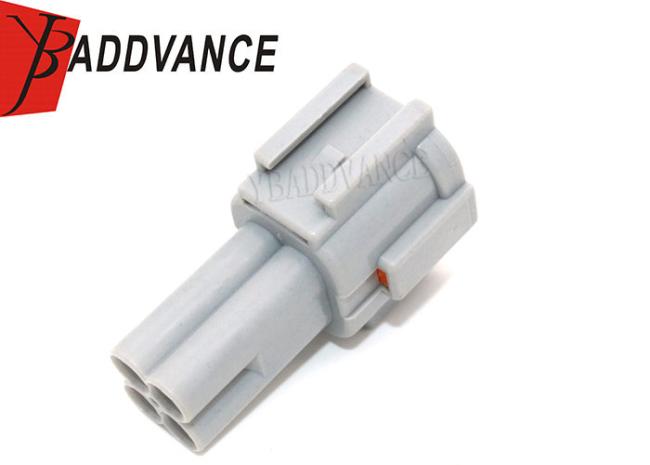

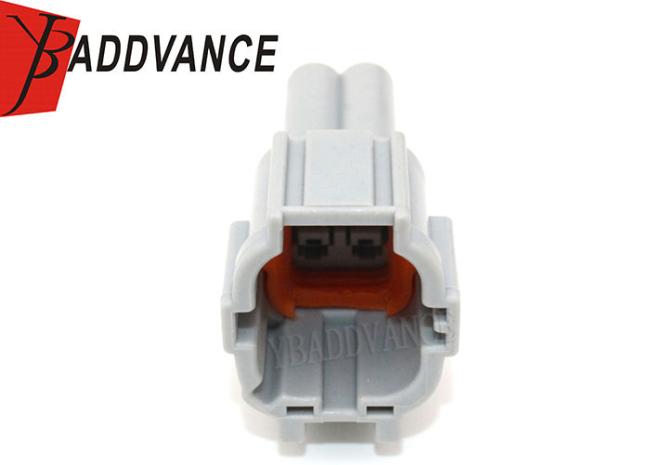

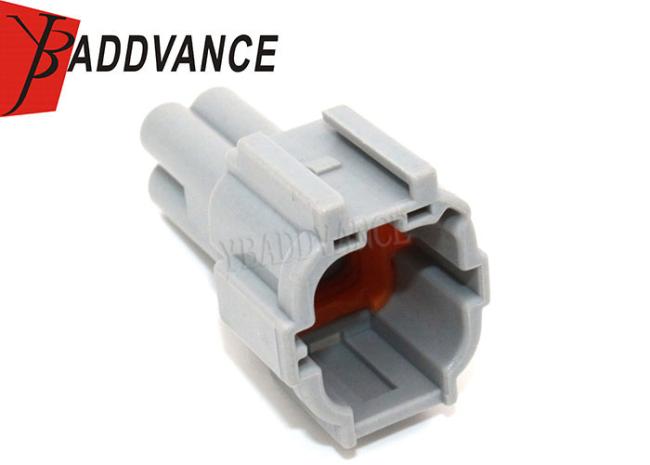

Product Picture Details
