6 Hole Male TE Connectivity Econoseal J Series Connector 174264-2
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6 Hole Male TE Connectivity Econoseal J Series Connector 174264-2
Description
6 Hole Male TE Connectivity Econoseal J Series Connector
For Use With: AMP 174265 Series Pin Crimp Contacts
Wire Gauge (Max):24 AWG
Wire Gauge (Min): 16 AWG
Length: 35.5mm
Width: 23.1mm
Height: 19.2mm
Width: 23.1mm
Height: 19.2mm
Pitch Spacing: 4.8mm
Minimum Operating Temperature: -30°C
Maximum Operating Temperature: +105°C
Maximum Operating Temperature: +105°C
Housing Material : PBT
Terminal: Brass/Phosphor Bronze
Seal: Silicon Rubber
Seal: Silicon Rubber
The design of these receptacle and plug style wire connector housings allows mis-mating to be prevented thus avoiding contact damage.
Specification
|
Item name |
6 Hole Male TE Connectivity Econoseal J Series Connector 174264-2 |
| P/N | 174264-2 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

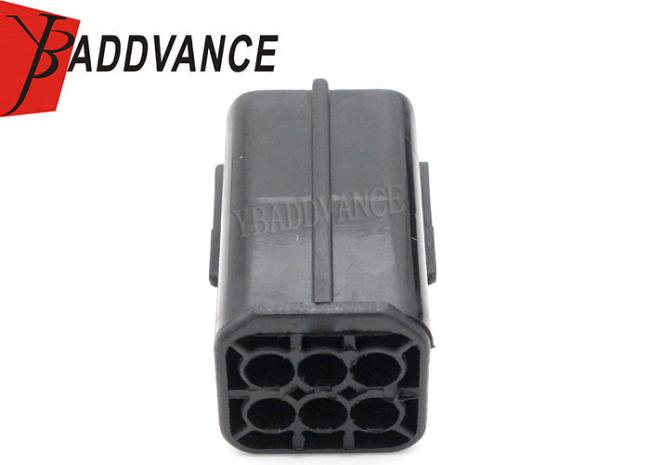

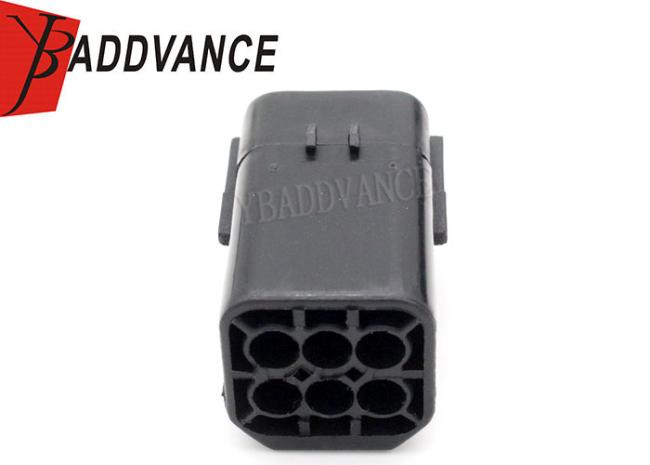

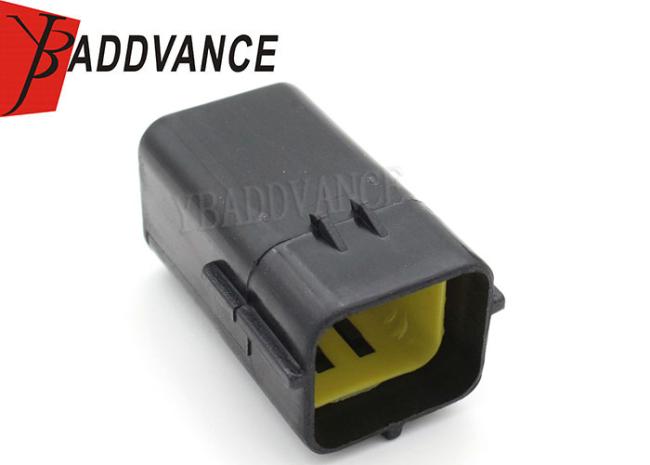

Product Picture Details
