Waterproof 2 Pin Alternator Connector For Mitsubishi Mazda Mercury 7223-1824-40
2 Pin Female Alternator Connector For Mitsubishi Mazda Mercury 7223-1824-40 7223-1824-80
Description
2 Pin Female Electrical Connector for Japanese Car 7223-1824-40
1 Row ,2 Way
YBADDVANCE Connection Type
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Low Level / Contact / Resistance: 3milli ohm Max.(Initial)
Insulation / Resistance: 100Megohm Min.(at 500VDC)
Withstanding / Voltage: 1000V AC (1min.)
Temperature / Range*9: -40 to 100deg.C
It's fit for the following application: N issan Car
Including : 1 housing +2 terminals +2 seals
We can make the wire if you need it
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
If you need more, please contact with us to get cheaper price.
Specification
|
Item name |
2 Pin Female Electrical Connector for Japanese Car 7223-1824-40 |
| P/N | 7223-1824-40 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

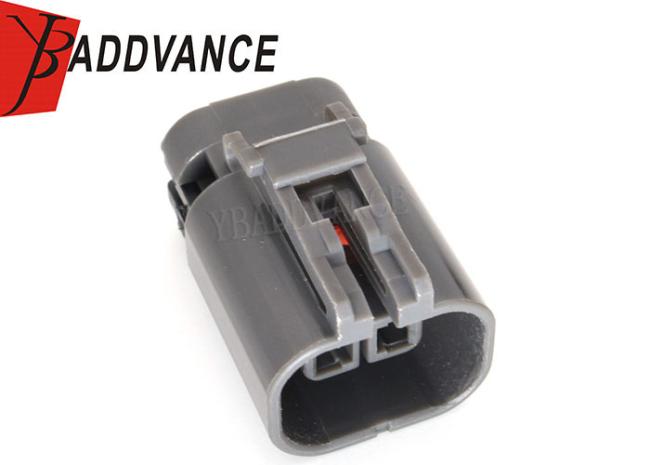

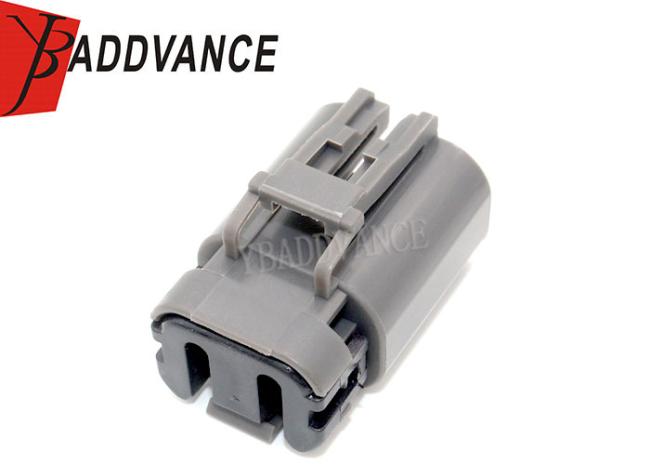

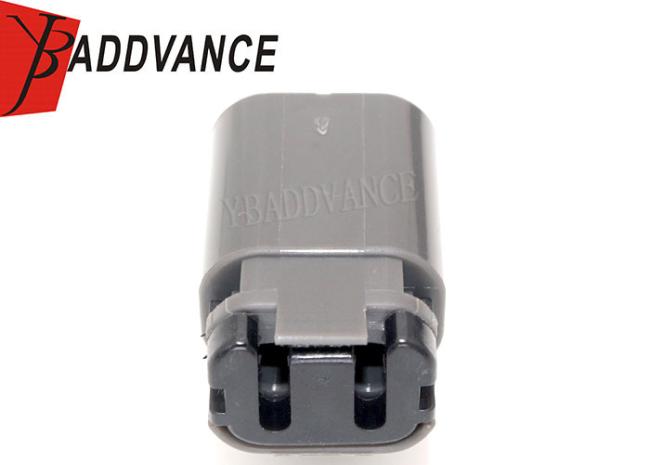

Product Picture Details
