Diesel Injector Connector 2 Pin Female / Common Rail Injector Connector 13816706
2 Pin Female Diesel Common Rail Engine Injector Connector 13816706
Description
2 Pin Female Diesel Common Rail Engine Injector Connector
These Connector belong to ful injector connector , it is used for fuel injector
1 Row ,2 Way
Brand : D elphi
Including : 1 housing +2 terminals +2 seals
Application : Diesel Common Rail Engine Fuel Injector
Terminal: Copper Alloy/Brass/Phosphor Bronze.
Seal: Silicon Rubber
Lock : PA66
We can make the wire harness if you need it
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality with reasonable price ,If you need more, please contact with us to get cheaper price.
Specification
|
Item name |
2 Pin Female Diesel Common Rail Engine Injector Connector 13816706 |
| P/N | 13816706 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

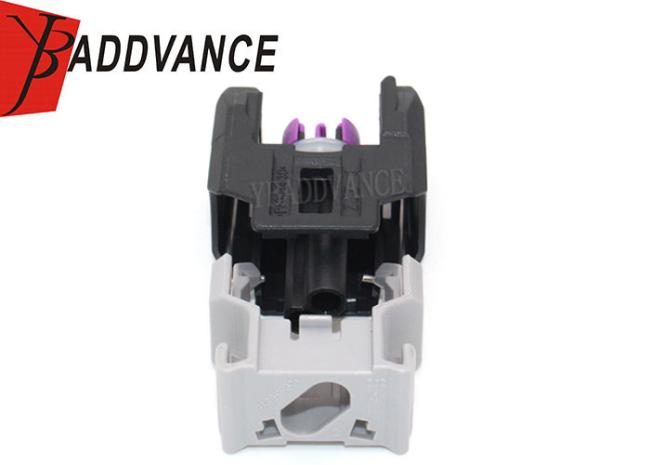

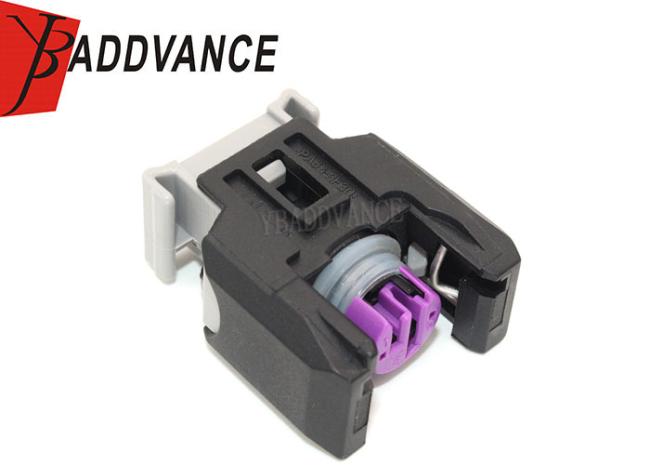

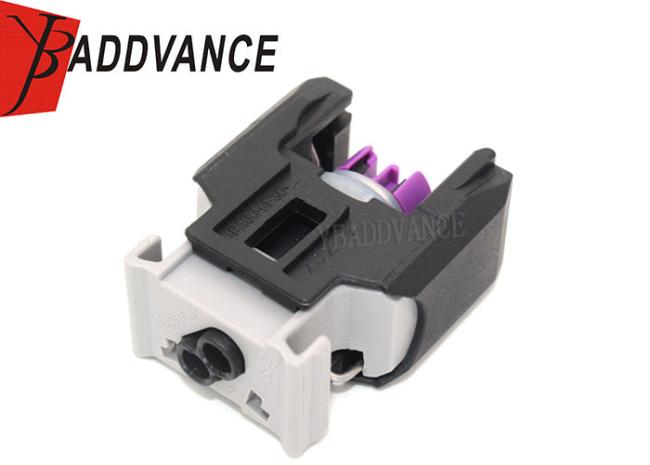

Product Picture Details
