Fuel Tank Connectors 2 Pin Fuel Pump Connector Female For Nissan 7223-1824-80
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
Fuel Tank Connectors 2 Pin Fuel Pump Connector Female For Nissan
Description
YBADDVANCE 2 Pin female connector is fit for Nissan fuel pumps and come with assembly kits.
1 x female plug housing
2 x wire seals
2 x female terminals
Specification
|
Item name |
2 Pin Fuel Pump Connectors |
| P/N | 7223-1824-40 7223-1824-80 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin fuel tank Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The Number of Way | 2 way |
| Color | L.Gray |
| Warranty | 1 year |
| Application | For Nissan Fuel Pump |

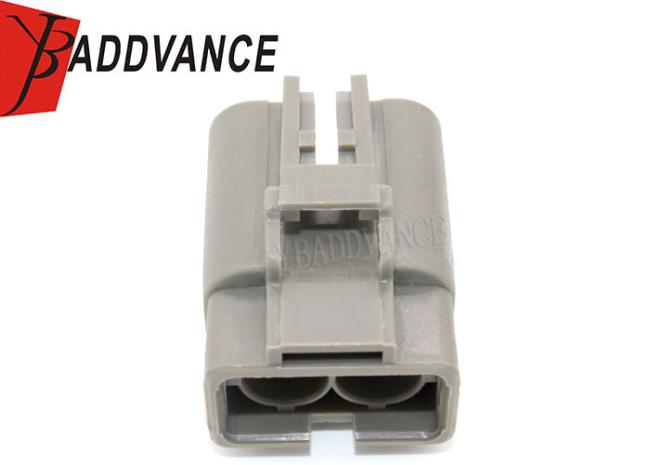

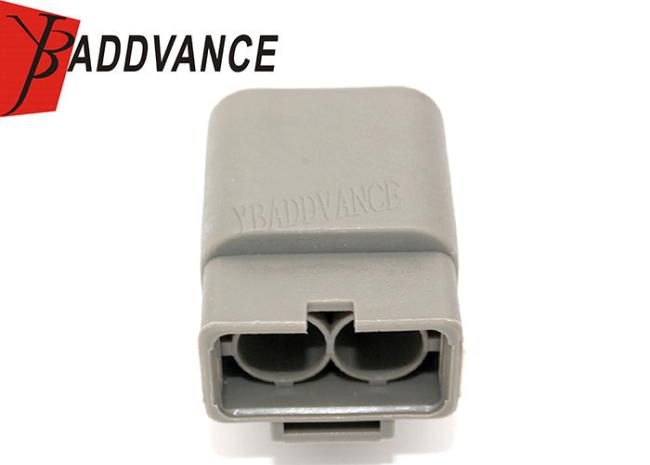

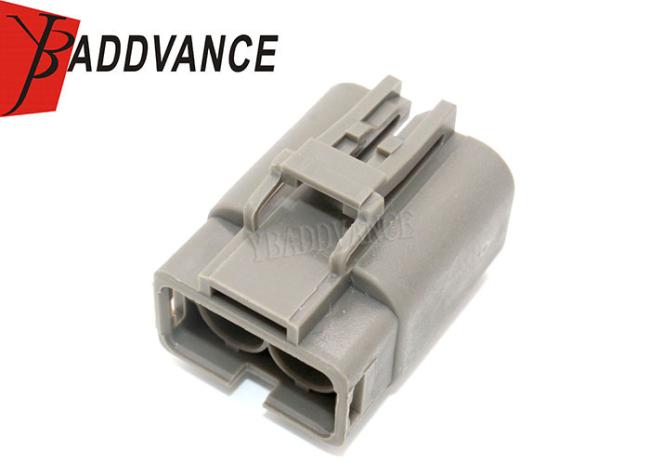

Product Picture Details
