15491547 15336029 3 Pin GT 150 Sealed Series Speed Sensor or Siren Connector
15491547 15336029 3 Pin GT 150 Sealed Series Speed Sensor or Siren Connector
Description
3 Pin GT 150 Sealed Series Speed Sensor or Siren Connector
The Connector for Speed Sensor or Siren
The D elphi GT150 series of sealed female connectors have a 1.5mm blade width.
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -125°C.
1 Row , 3 Way
Width: 20.5mm
Height: 18.5mm
Depth: 26mm
Including : : 1 housing +3 terminals+3 Seals +1 Lock
We can make the wire harness if you need it
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality with reasonable price ,If you need more, please contact with us to get cheaper price.
Specification
|
Item name |
15491547 15336029 3 Pin GT 150 Sealed Series Speed Sensor or Siren Connector |
| P/N | 15491547 15336029 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

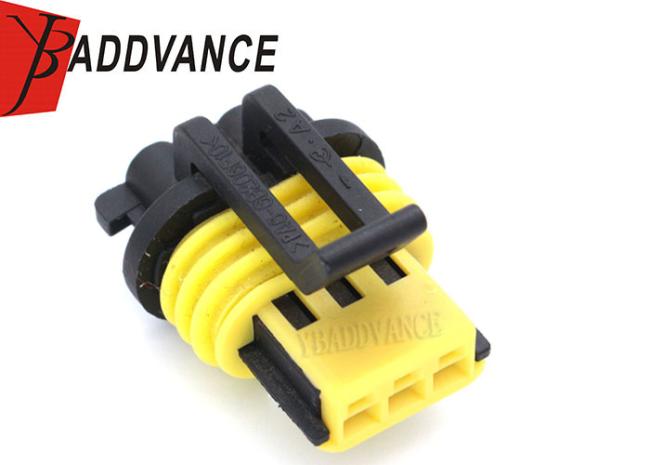

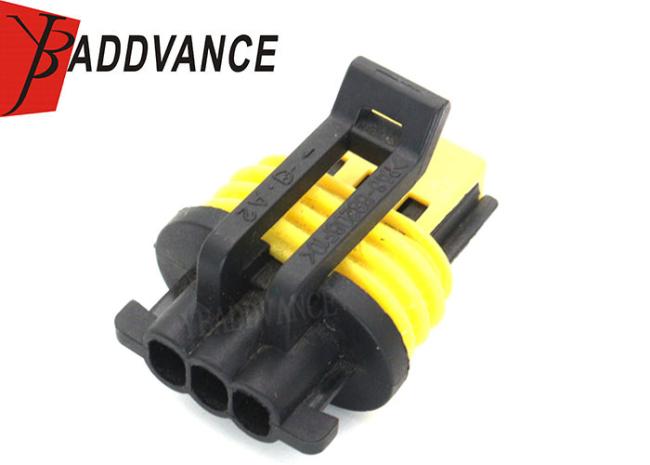

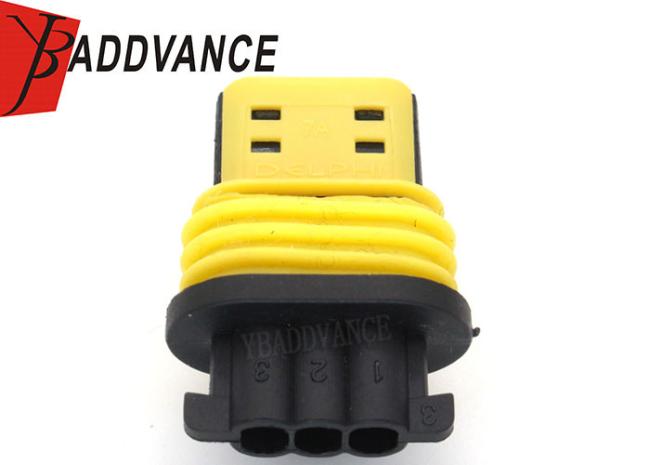

Product Picture Details
